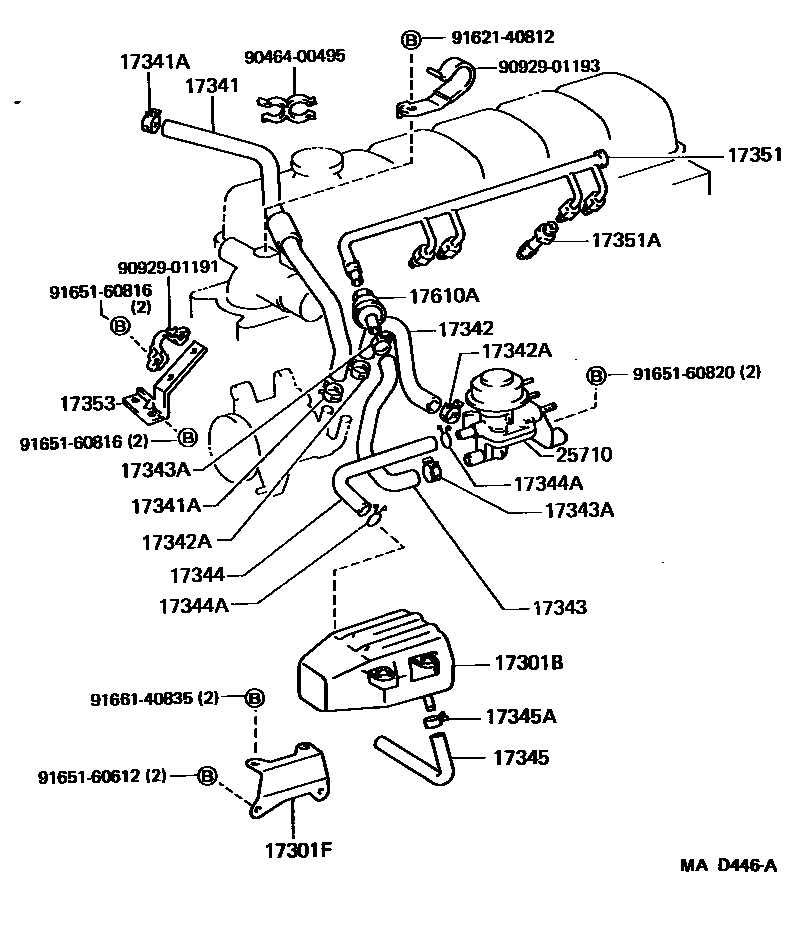

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17301BSILENCER SUB-ASSY, AIR SUCTION

main17301-61020i3FE..FJ80199001-199208

17301FBRACKET, SILENCER SUB-ASSY, AIR SUCTION

main17894-61010i3FE..FJ80199001-199208

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-61050i3FE..FJ80199001-199208

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-28003×2i3FE..FJ80199001-199208

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-61060i3FE..FJ80199001-199208

main17342-66010i1FZFE..FZJ80199208-199501

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-28003×2i3FE..FJ80199001-199208

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-61040i3FE..FJ80199001-199208

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-28003×2i3FE..FJ80199001-199208

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-61030i3FE..FJ80199001-199208

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-23001×2i3FE..FJ80199001-199208

17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)

main17345-61040i3FE..FJ80199001-199208

17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)

main90467-28003i3FE..FJ80199001-199208

17351MANIFOLD, AIR INJECTION

main17306-61030i3FE..FJ80199001-199208

17351AUNION, AIR INJECTION

main90404-14012×4i3FE..FJ80199001-199208

17353SUPPORT, AIR INJECTION MANIFOLD

main17353-61010i3FE..FJ80199001-199208

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10076i3FE..FJ80199001-199208

25710VALVE ASSY, AIR SWITCHING

main25710-61031i3FE..FJ80199001-199208

9046400495

main90464-00495

9092901191

main90929-01191

9092901193

main90929-01193

9162140812

main91621-40812

9165160612

main91651-60612

9165160816

main91651-60816

9165160820

main91651-60820

9166140835

main91661-40835

25 parts on this diagram · 2 diagrams in section
