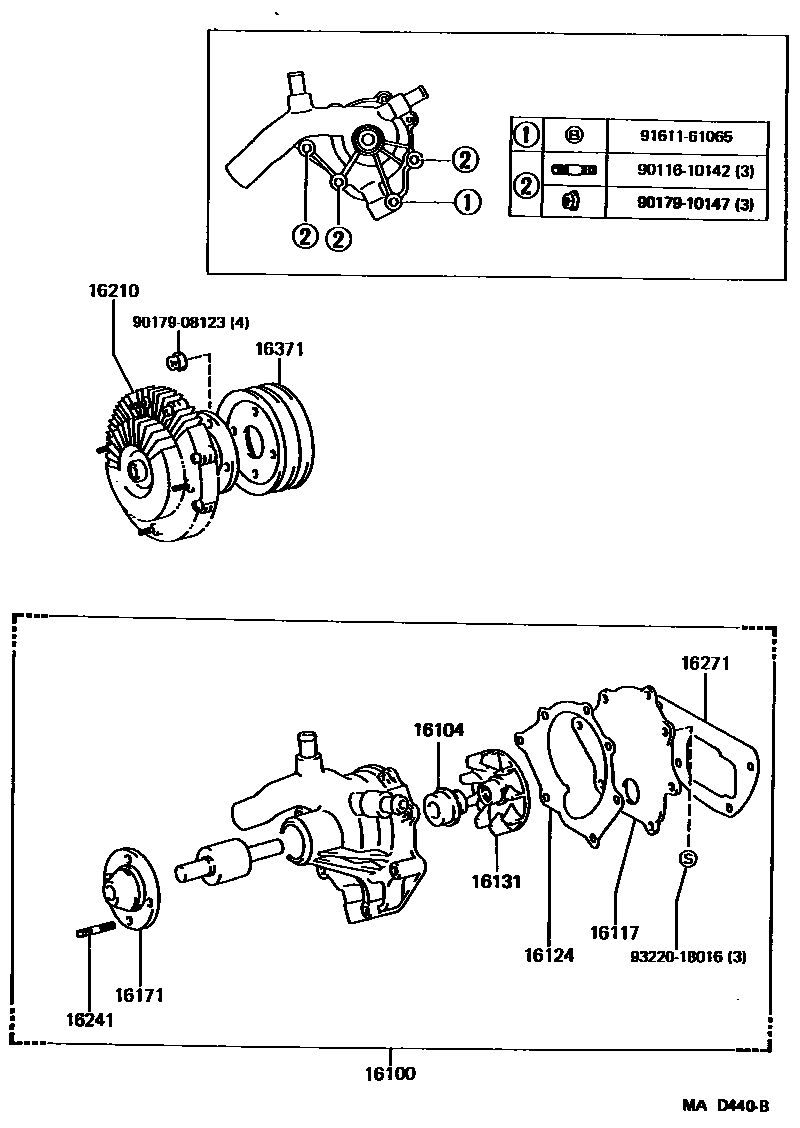

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-69255i3FE..FJ80199001-199208

main16100-69325i1FZFE..FZJ80199208-199801

16104SEAL SET, WATER PUMP

main16104-70010i3FE..FJ80199001-199208

16117PLATE, WATER PUMP

main16117-61110i3FE..FJ80199001-199208

16124GASKET, WATER PUMP COVER

main16124-61250i3FE..FJ80199001-199208

16131ROTOR, WATER PUMP

main16131-61110i3FE..FJ80199001-199208

16171SEAT, WATER PUMP PULLEY

main16171-61071i3FE..FJ80199001-199208

16210COUPLING ASSY, FLUID

main16210-61160i3FE..FJ80199001-199208

main16210-66010i1FZFE..FZJ80199208-199801

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-41050×3i3FE..FJ80199001-199208

16271GASKET, WATER PUMP

main16271-61020i3FE..FJ80199001-199208

main16271-66020i1FZFE..FZJ80199208-199801

16371PULLEY, FAN

main16173-61070i3FE..FJ80199001-199208

main16371-66020i1FZFE..FZJ80199208-199801

9011610142

main90116-10142

9017908123

main90179-08123

9017910147

main90179-10147

9161161065

main91611-61065

9322018016

main93220-18016

15 parts on this diagram · 2 diagrams in section
