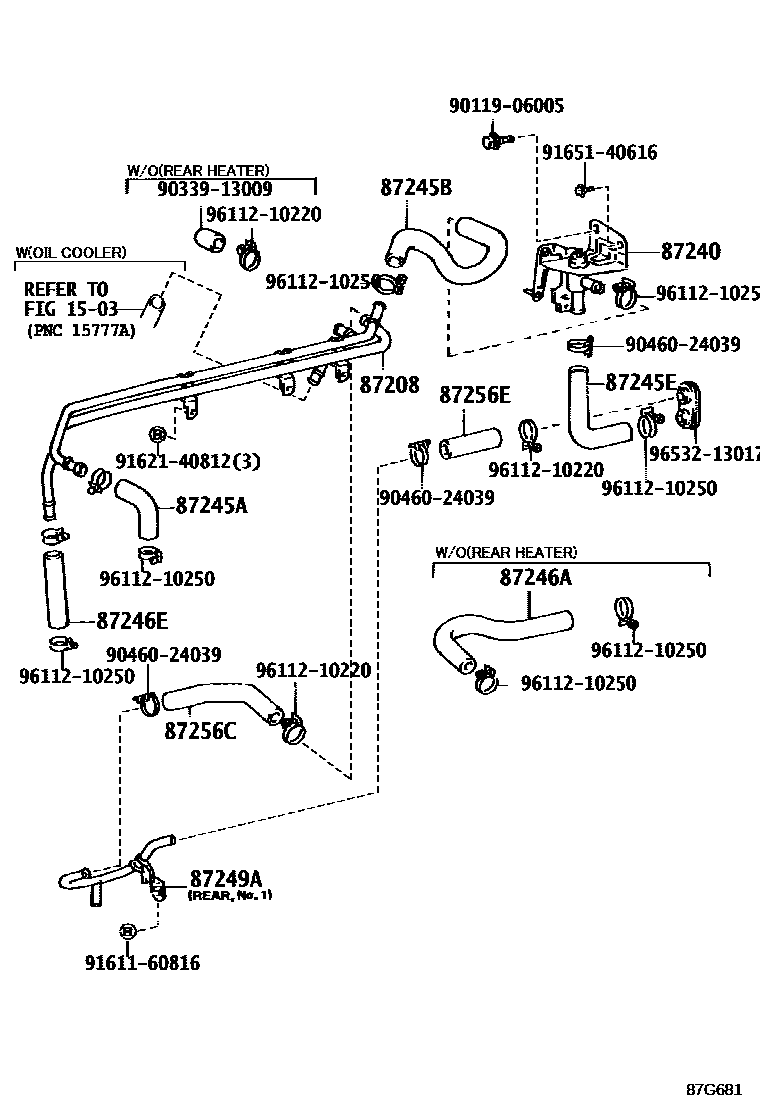

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1REAR WATER PIPING

1503ENGINE OIL COOLER

→ Go to FIG 15-03

87208PIPE SUB-ASSY, HEATER WATER

main87208-90K06iFJ62198708-199001

87240VALVE ASSY, HEATER WATER

main87240-90A00iFJ62198708-199001

87245AHOSE, HEATER WATER, INLET A

main87245-90K53iFJ62198708-199001

87245BHOSE, HEATER WATER, INLET B

main87245-90A27iFJ62198708-199001

87245EHOSE, HEATER WATER, INLET E

main87245-90A00iFJ62198708-199001

87246AHOSE, HEATER WATER, OUTLET A

main87245-90A28iFJ62..USA198708-199001

87246EHOSE, HEATER WATER, OUTLET E

main87245-90K36iFJ62198708-199001

87249APIPE, HEATER WATER OUTLET, A

main87248-90A24iFJ62198708-199001

REAR NO.2

main87248-90A25iFJ62198708-199001

REAR NO.1

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-90A30iFJ62198708-199001

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main99556-30100iFJ62198708-199001

*H,L=60

9011906005

main90119-06005

9033913009

main90339-13009

9046024039

main90460-24039

9161160816

main91611-60816

9162140812

main91621-40812

9165140616

main91651-40616

9611210220

main96112-10220

9611210250

main96112-10250

9653213017

main96532-13017

20 parts on this diagram · 2 diagrams in section
