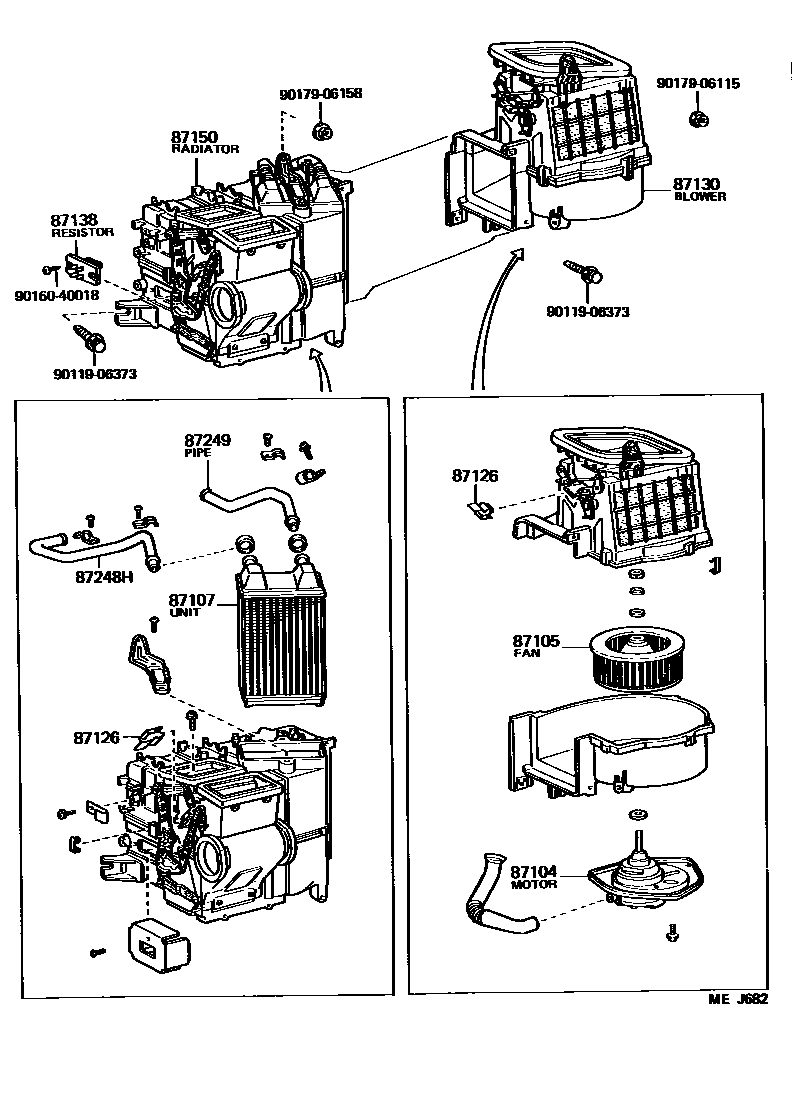

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT HEATER 0002 1REAR HEATER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-90A00iFJ62198708-199001

FRONT

main87104-90K03iFJ62198708-199001

REAR

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iFJ62198708-199001

FRONT

main87105-87002iFJ62198708-199001

REAR

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-90A04iFJ62198708-199001

FRONT

main87107-90A06iFJ62198708-199001

REAR

87126CLAMP, HEATER CONTROL

main87126-16010iFJ62198708-199001

BLOWER

main87126-90A01×2iFJ62198708-199001

RADIATOR

87130BLOWER ASSY, HEATER, FRONT

main87130-90A01iFJ62198708-199001

87138RESISTOR, HEATER BLOWER

main87138-22030iFJ62198708-199001

FRONT

main87138-90K02iFJ62198708-199001

REAR

87150RADIATOR ASSY, HEATER

main87150-90A14iFJ62198708-199001

87248HPIPE, HEATER WATER INLET

main87248-90A01iFJ62198708-199001

87249PIPE, WATER

main87248-90A03iFJ62198708-199001

9011906373

main90119-06373

9016040018

main90160-40018

9017906115

main90179-06115

9017906158

main90179-06158

13 parts on this diagram · 2 diagrams in section
