SPEAKER

0001 1FRONT SPEAKER 0002 1REAR SPEAKER

8202WIRING & CLAMP

→ Go to FIG 82-02

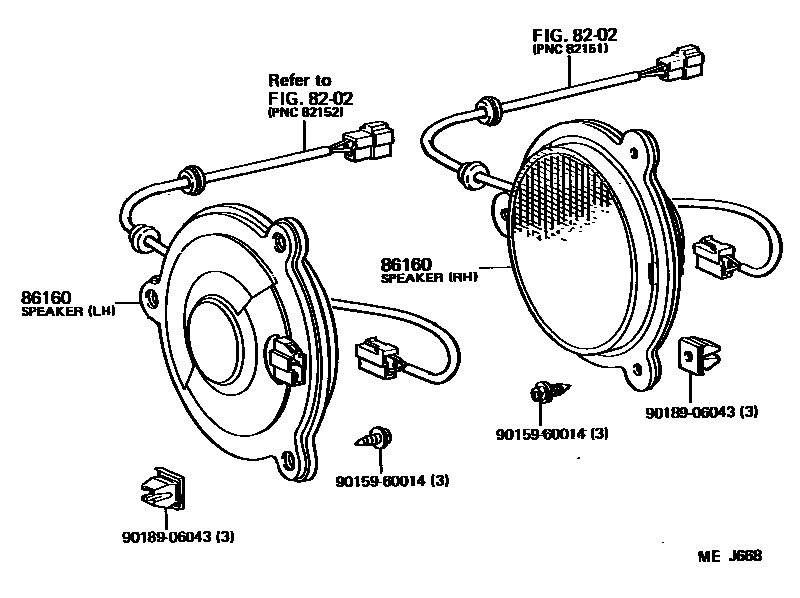

86160SPEAKER ASSY, FRONT NO.1

main86160-90A05iFJ62198708-199001

RH

main86160-90A06iFJ62198708-199001

LH

9015960014

main90159-60014

9018906043

main90189-06043

4 parts on this diagram · 2 diagrams in section
