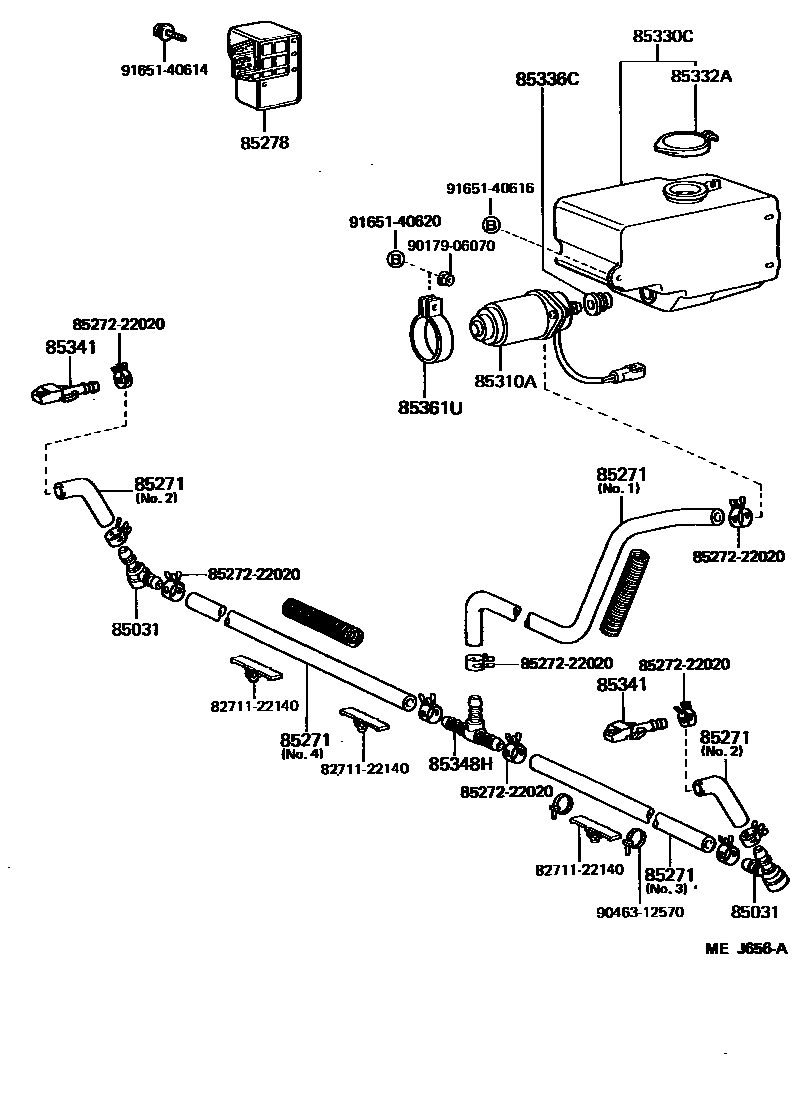

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iFJ62198708-199001

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-90A00iFJ62198708-199001

NO.1

main85271-90A01×2iFJ62198708-199001

NO.2

main85271-90A02iFJ62198708-199001

NO.3

main90445-14072iFJ62198708-199001

L=1320,NO.4

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iFJ62198708-199001

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22070iFJ62198708-199001

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-90A04iFJ62198708-199001

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-90A00iFJ62198708-199001

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iFJ62198708-199001

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-90A03×2iFJ62198708-199001

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main85352-12010iFJ62198708-199001

85361UBRACKET, HEADLAMP CLEANER WASHER

main85361-10070iFJ62198708-199001

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9017906070

main90179-06070

9046312570

main90463-12570

9165140614

main91651-40614

9165140616

main91651-40616

9165140620

main91651-40620

17 parts on this diagram · 1 diagram in section
