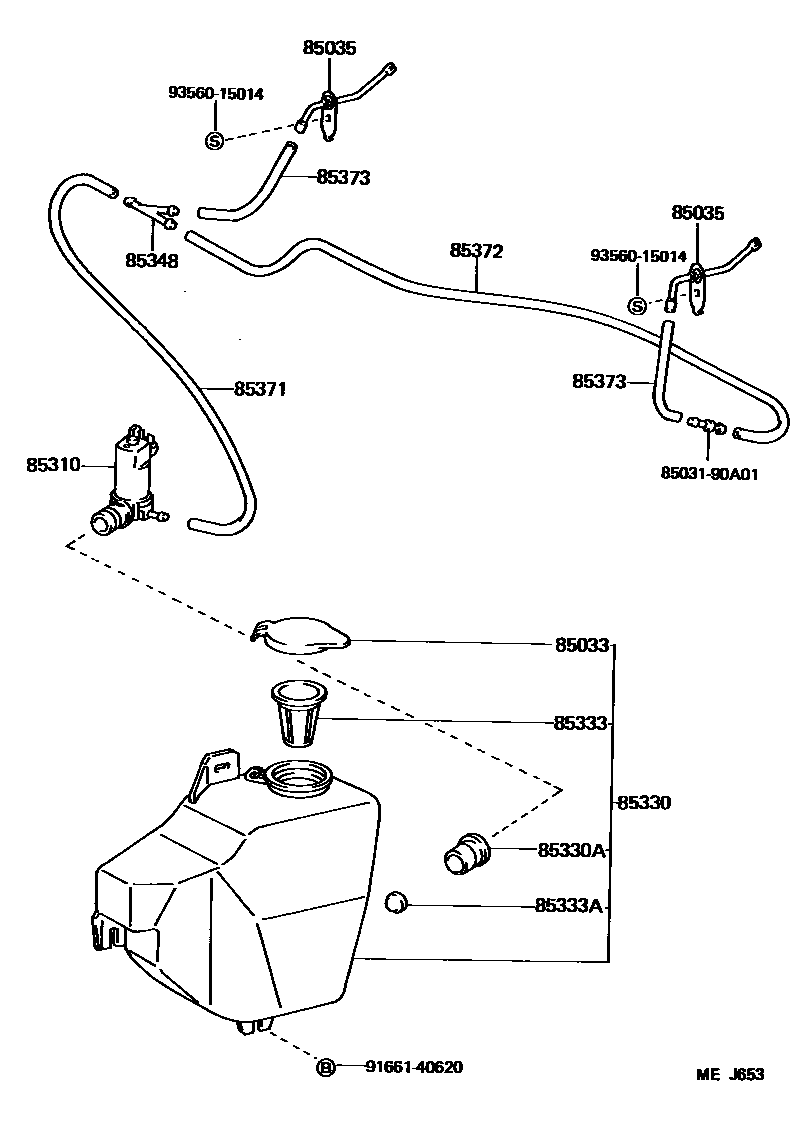

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-90A01iFJ62198708-199001

85035NOZZLE SUB-ASSY, WASHER

main85341-90A05iFJ62198708-199001

LH

main85341-90A08iFJ62198708-199001

RH

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-14080iFJ62198708-199001

85330JAR ASSY, WINDSHIELD WASHER

main85330-90A07iFJ62198708-199001

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32103iFJ62198708-199001

85333FILTER, WINDSHIELD WASHER JAR

main85333-60010iFJ62198708-199001

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85333-20020iFJ62198708-199001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-89101iFJ62198708-199001

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33332iFJ62198708-199001

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33332iFJ62198708-199001

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33332×2iFJ62198708-199001

8503190A01VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-90A01

9166140620

main91661-40620

9356015014

main93560-15014

14 parts on this diagram · 1 diagram in section
