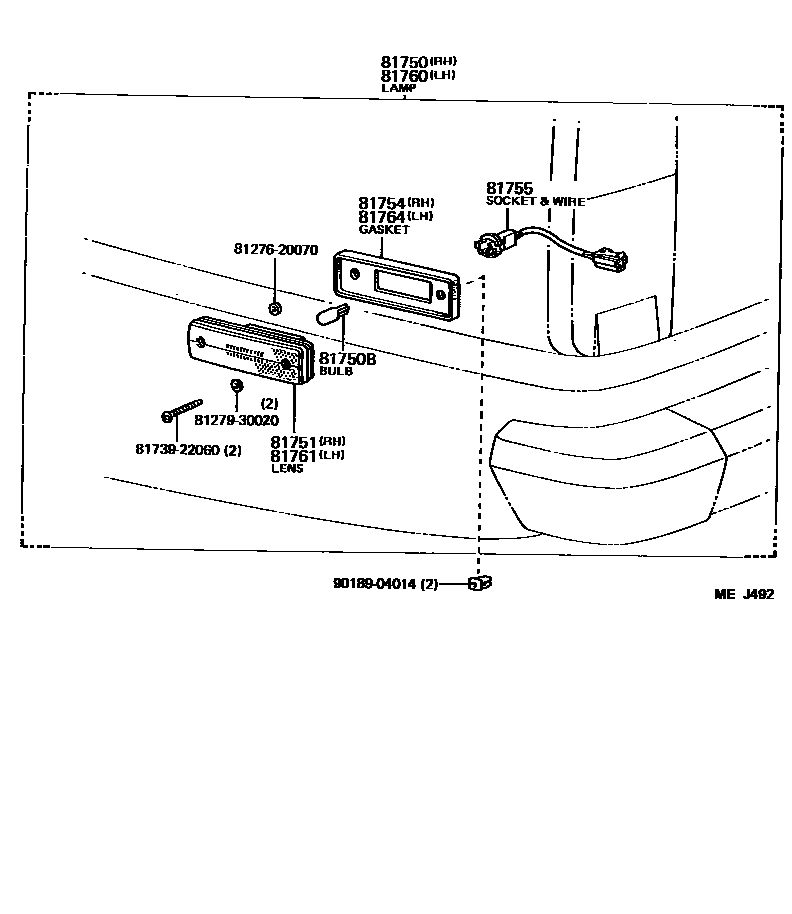

REAR SIDE MARKER LAMP

81750LAMP ASSY, REAR SIDE MARKER, RH

main81750-91255iFJ62198708-199001

81750BBULB, REAR SIDE MARKER LAMP

main90981-11020×2iFJ62198708-199001

12V 3.8W

81751LENS, REAR SIDE MARKER LAMP, RH

main81751-14030iFJ62198708-199001

81754GASKET, REAR SIDE MARKER LAMP BODY, RH

main81754-91255iFJ62198708-199001

81755SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP

main81755-20060×2iFJ62198708-199001

81760LAMP ASSY, REAR SIDE MARKER, LH

main81750-91255iFJ62198708-199001

81761LENS, REAR SIDE MARKER LAMP, LH

main81751-14030iFJ62198708-199001

81764GASKET, REAR SIDE MARKER LAMP BODY, LH

main81754-91255iFJ62198708-199001

8127620070RIM, LICENSE PLATE LAMP

main81276-20070

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8173922060

main81739-22060

9018904014

main90189-04014

12 parts on this diagram · 1 diagram in section
