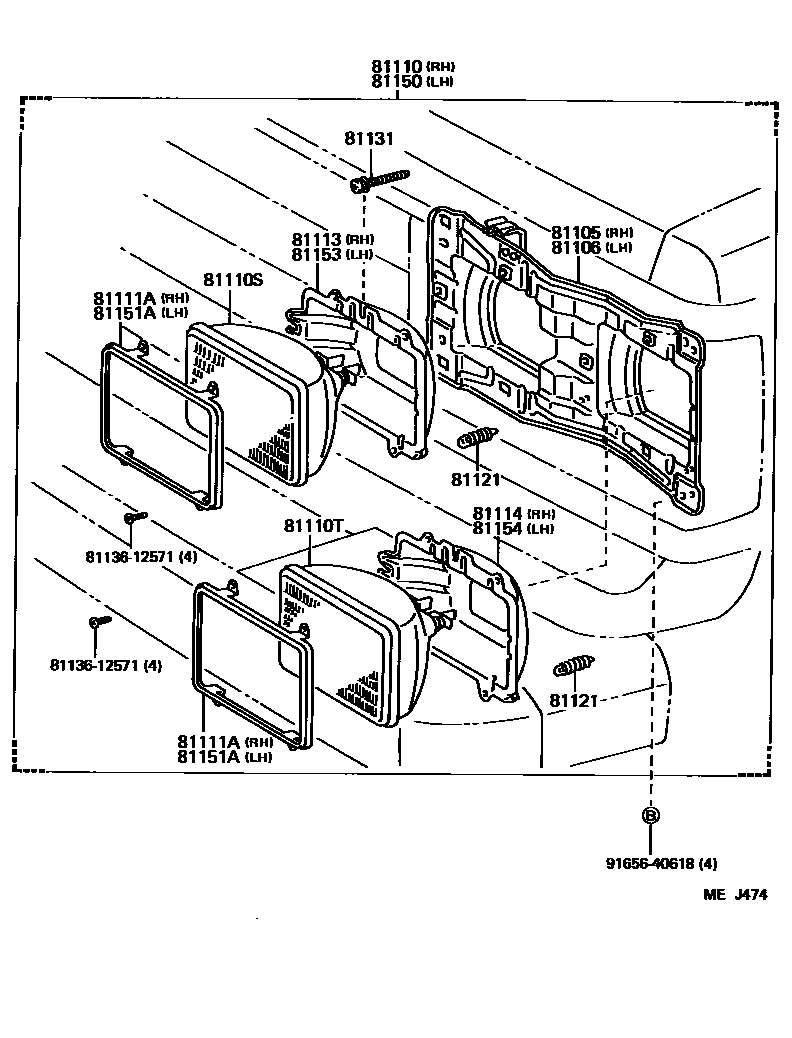

HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-90A27iFJ62198708-199001

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-90A27iFJ62198708-199001

81110HEADLAMP ASSY, RH

main81110-90A28iFJ62198708-199001

81110SSEALED BEAM UNIT, NO.1

main90981-05034×2iFJ62198708-199001

12V 50W,*WB

81110TSEALED BEAM UNIT, NO.2

main90981-05035×2iFJ62198708-199001

12V 40/60W,*WB

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-20360×2iFJ62198708-199001

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-90B04iFJ62198708-199001

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81154-22391iFJ62198708-199001

81121SPRING, HEADLAMP TENSION

main81121-14320×4iFJ62198708-199001

81131SCREW, HEADLAMP ADJUSTING

main81131-28050×8iFJ62198708-199001

81150HEADLAMP ASSY, LH

main81150-90A28iFJ62198708-199001

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-20360×2iFJ62198708-199001

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-90B04iFJ62198708-199001

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-22391iFJ62198708-199001

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9165640618

main91656-40618

16 parts on this diagram · 1 diagram in section
