SEAT BELT

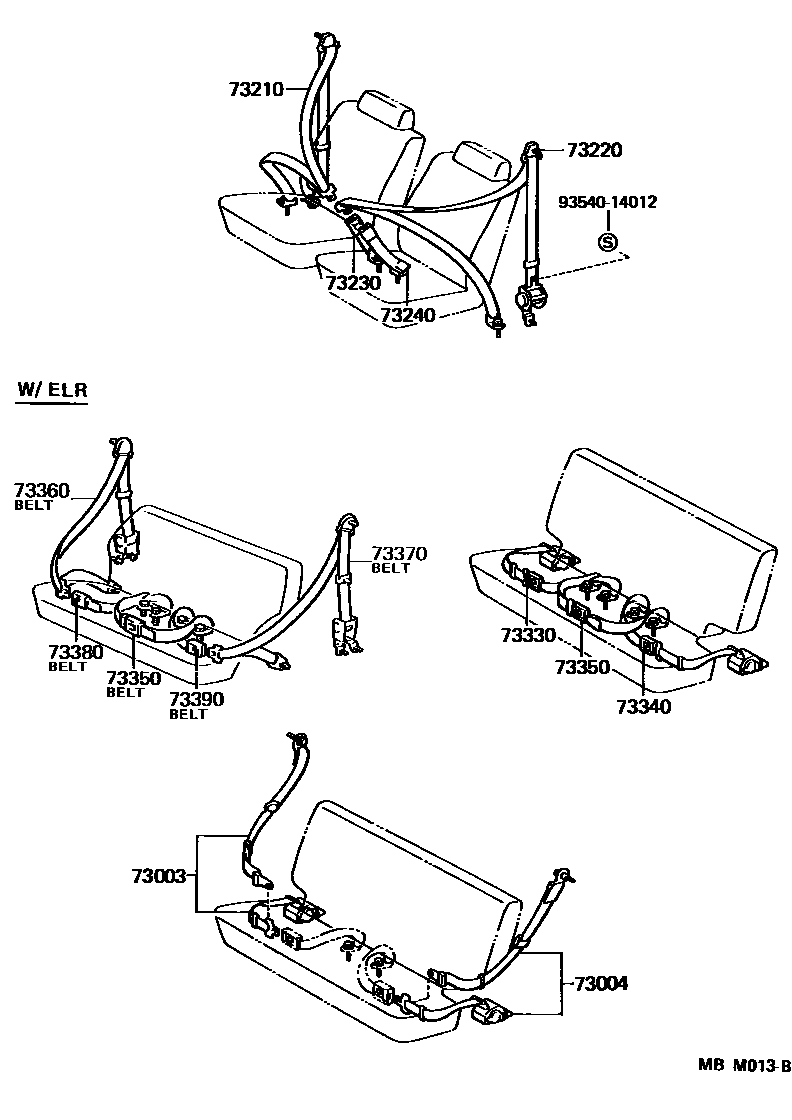

Parts diagram
73003BELT SET, REAR SEAT 3 POINT TYPE, RH
main73003-90A00-03i198708-198808
GRAY,TRIM1#
main73003-90A00-06i198708-198808
SEPIA BROWN,TRIM4#
73004BELT SET, REAR SEAT 3 POINT TYPE, LH
main73003-90A00-03i198708-198808
GRAY,TRIM1#
main73003-90A00-06i198708-198808
SEPIA BROWN,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-90A26-03i198708-198808
GRAY,TRIM1#
main73210-90A26-06i198708-198808
SEPIA BROWN,TRIM4#
main73210-90A29-03i198808-199001
GRAY,TRIM1#
main73210-90A29-06i198808-199001
SEPIA BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-90A15-03i198708-198808
GRAY,TRIM1#
main73220-90A15-06i198708-198808
SEPIA BROWN,TRIM4#
main73220-90A17-03i198808-199001
GRAY,TRIM1#
main73220-90A17-06i198808-199001
SEPIA BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-90A17-06i198708-199001
SEPIA BROWN,TRIM4#
main73230-90A17-13i198708-199001
SHADOW GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-90A20-03i198708-199001
SHADOW GRAY,TRIM1#
main73240-90A20-06i198708-199001
SEPIA BROWN,TRIM4#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-90A05-13i198708-198711
SHADOW GRAY,TRIM1#
main73330-90A05-16i198708-198711
SEPIA BROWN,TRIM4#
main73330-90A37-03i198711-198808
GRAY,TRIM1#
main73330-90A37-06i198711-198808
SEPIA BRWN,TRIM4#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-90A05-13i198708-198711
SHADOW GRAY,TRIM1#
main73330-90A05-16i198708-198711
SEPIA BROWN,TRIM4#
main73330-90A37-03i198711-198808
GRAY,TRIM1#
main73330-90A37-06i198708-198711
SEPIA BRWN,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73330-90A04-13i198708-198808
SHADOW GRAY,TRIM1#
main73330-90A04-16i198708-198808
SEPIA BROWN,TRIM4#
main73330-90A46-03i198808-199001
GRAY,TRIM1#
main73330-90A46-06i198808-199001
SEPIA BROWN,TRIM4#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-90A40-03i198808-199001
GRAY,TRIM1#
main73360-90A40-06i198808-199001
SEPIA BROWN,TRIM4#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73360-90A40-03i198808-199001
GRAY,TRIM1#
main73360-90A40-06i198808-199001
SEPIA BROWN,TRIM4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-90A20-03i198808-199001
GRAY,TRIM1#
main73380-90A20-06i198808-199001
SEPIA BROWN,TRIM4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-90A20-03i198808-199001
GRAY,TRIM1#
main73380-90A20-06i198808-199001
SEPIA BROWN,TRIM4#
9354014012
main93540-14012

14 parts on this diagram · 1 diagram in section
