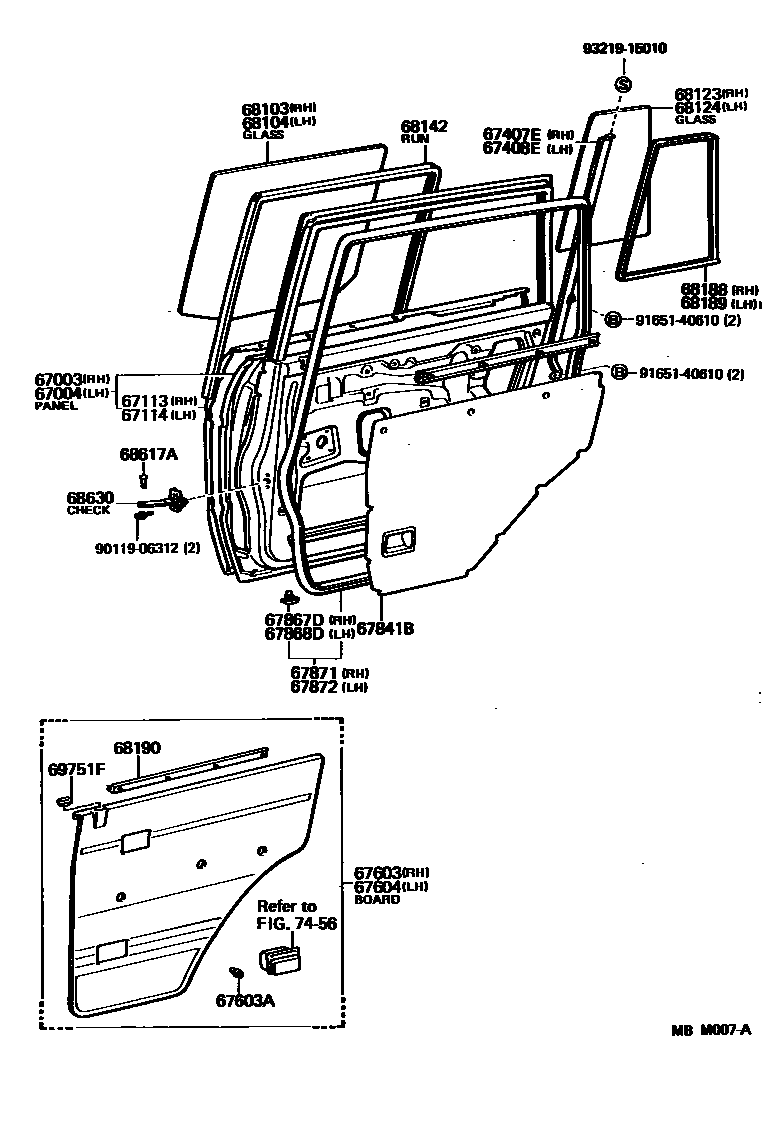

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-90A15iFJ62198708-199001

main67003-90A17iFJ62198708-199001

W(POWER WINDOW)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-90A15iFJ62198708-199001

main67004-90A17iFJ62198708-199001

W(POWER WINDOW)

67113PANEL, REAR DOOR, OUTER RH

main67113-90A05iFJ62198708-199001

67114PANEL, REAR DOOR, OUTER LH

main67114-90A05iFJ62198708-199001

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-90A00iFJ62198708-199001

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-90A00iFJ62198708-199001

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-90A25-03iFJ62..CND; FJ62..USA198708-198808

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-90A25-06iFJ62..CND; FJ62..USA198708-198808

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67630-90A28-03iFJ62198708-198808

SHADOW GRAY,TRIM1#

main67630-90A28-06iFJ62198708-198808

SEPIA BROWN,TRIM4#

main67630-90A33-03iFJ62198808-199001

SHADOW GRAY,TRIM1#

main67630-90A33-06iFJ62198808-199001

SEPIA BROWN,TRIM4#

main67630-90A36-03iFJ62..CND; FJ62..USA198808-199001

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-90A36-06iFJ62..CND; FJ62..USA198808-199001

W(POWER WINDOW),SEPIA BROWN,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-30060×18iFJ62198708-199001

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-90A25-03iFJ62..CND; FJ62..USA198708-198808

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-90A25-06iFJ62..CND; FJ62..USA198708-198808

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67640-90A28-03iFJ62198708-198808

SHADOW GRAY,TRIM1#

main67640-90A28-06iFJ62198708-198808

SEPIA BROWN,TRIM4#

main67640-90A34-03iFJ62198808-199001

SHADOW GRAY,TRIM1#

main67640-90A34-06iFJ62198808-199001

SEPIA BROWN,TRIM4#

main67640-90A37-03iFJ62..CND; FJ62..USA198808-199001

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-90A37-06iFJ62..CND; FJ62..USA198808-199001

W(POWER WINDOW),SEPIA BROWN,TRIM4#

67841BCOVER, REAR DOOR SERVICE HOLE

main67805-90A01×2iFJ62198708-198908

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-30040×21iFJ62198708-199001

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-30040×21iFJ62198708-199001

67871WEATHERSTRIP, REAR DOOR, RH

main67871-90A00iFJ62198708-199001

67872WEATHERSTRIP, REAR DOOR, LH

main67872-90A00iFJ62198708-199001

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-90A01iFJ62198708-199001

*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-90A01iFJ62198708-199001

*TT,T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-90A01iFJ62198708-199001

*TT,T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-90A01iFJ62198708-199001

*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-90A01×2iFJ62198708-199001

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-90A00iFJ62198708-199001

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-90A00iFJ62198708-199001

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-90A01×2iFJ62198708-199001

68617APIN, REAR DOOR CHECK

main68617-90A01×2iFJ62198708-199001

68630CHECK ASSY, REAR DOOR

main68630-90A00×2iFJ62198708-199001

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-20040×2iFJ62198708-199001

7456ASH RECEPTACLE

→ Go to FIG 74-56

9011906312

main90119-06312

9165140610

main91651-40610

9321915010

main93219-15010

29 parts on this diagram · 1 diagram in section
