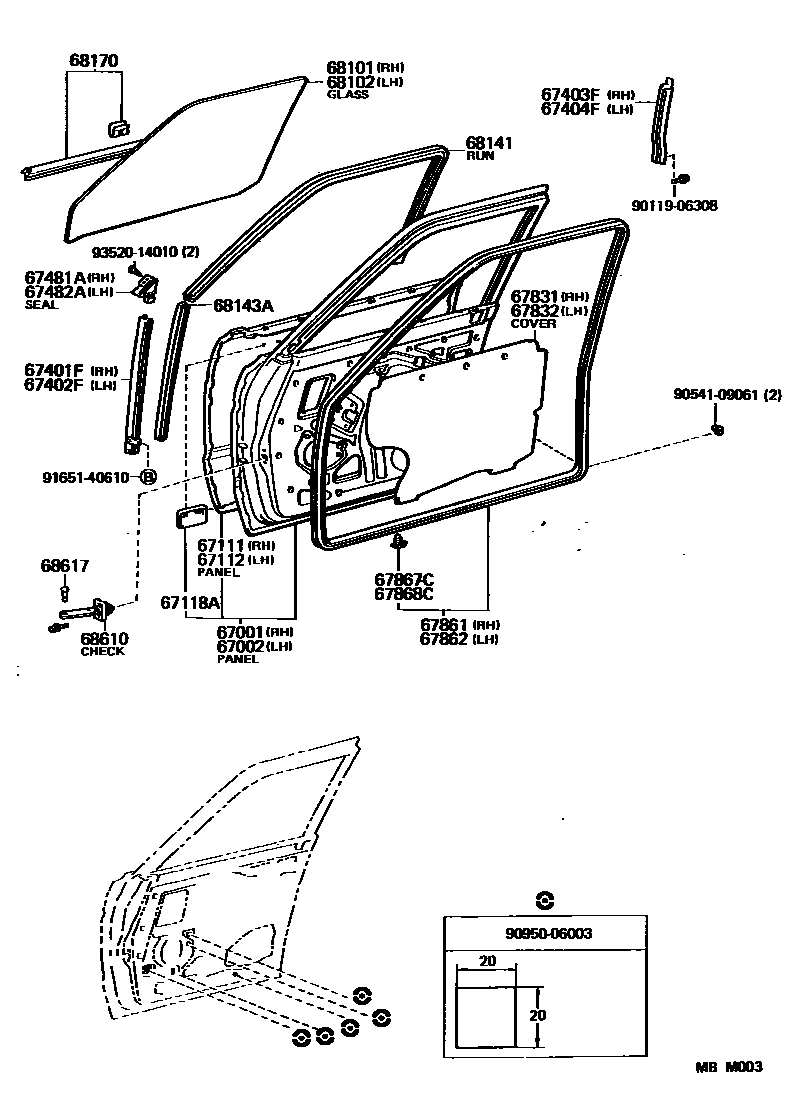

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W(REMOCON MIRROR)
67002PANEL SUB-ASSY, FRONT DOOR, LH
W(REMOCON MIRROR)
67111PANEL, FRONT DOOR, OUTER RH
W(REMOCON MIRROR)
67112PANEL, FRONT DOOR, OUTER LH
W(REMOCON MIRROR)
67118ARETAINER, OUTER REAR VIEW MIRROR
W(REMOCON MIRROR)
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0
68141RUN, FRONT DOOR GLASS
68143ARUN, FRONT DOOR GLASS, NO.2
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
9011906308
main90119-06308
9054109061
main90541-09061
9095006003
main90950-06003
9165140610
main91651-40610
9352014010
main93520-14010
29 parts on this diagram · 2 diagrams in section
