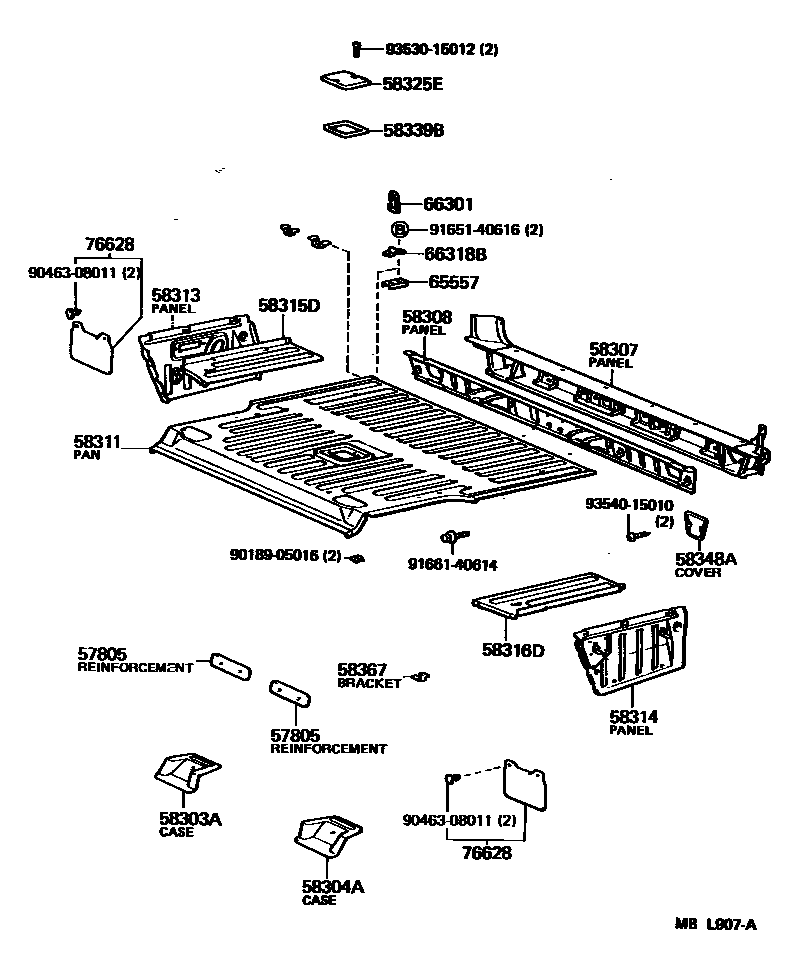

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-90A00×2iFJ62198708-199001

58303ACASE SUB-ASSY, REAR FLOOR PAN RETRACTOR, RH

main58303-90A00iFJ62198708-198808

58304ACASE SUB-ASSY, REAR FLOOR PAN RETRACTOR, LH

main58304-90A00iFJ62198708-198808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-90A00iFJ62198708-199001

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-90A03iFJ62198708-199001

58311PAN, REAR FLOOR

main58311-90A19iFJ62198808-199001

main58311-90A20iFJ62198708-198808

58313PANEL, REAR FLOOR SIDE, RH

main58305-90A08iFJ62198708-199001

58314PANEL, REAR FLOOR SIDE, LH

main58306-90A12iFJ62198708-199001

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-90A07iFJ62198708-199001

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-90A07iFJ62198708-199001

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-90A00iFJ62198708-199001

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-90A00iFJ62198708-199001

58348ACOVER, REAR BODY MOUNTING SERVICE HOLE

main58348-90A00×2iFJ62198708-199001

58367BRACKET, FUEL TUBE CLAMP

main58367-90A00iFJ62198708-199001

65557RETAINER, ROPE HOOK

main65557-90A01×4iFJ62198708-199001

66301HOOK SUB-ASSY, ROPE

main66301-90A00×4iFJ62198708-199001

66318BBAND, ROPE HOOK

main66318-90A00×4iFJ62198708-199001

76628MUDGUARD, QUARTER PANEL, REAR

main76628-90A01×2iFJ62198708-199001

9018905016

main90189-05016

9046308011

main90463-08011

9165140616

main91651-40616

9166140614

main91661-40614

9353015012

main93530-15012

9354015010

main93540-15010

24 parts on this diagram · 2 diagrams in section
