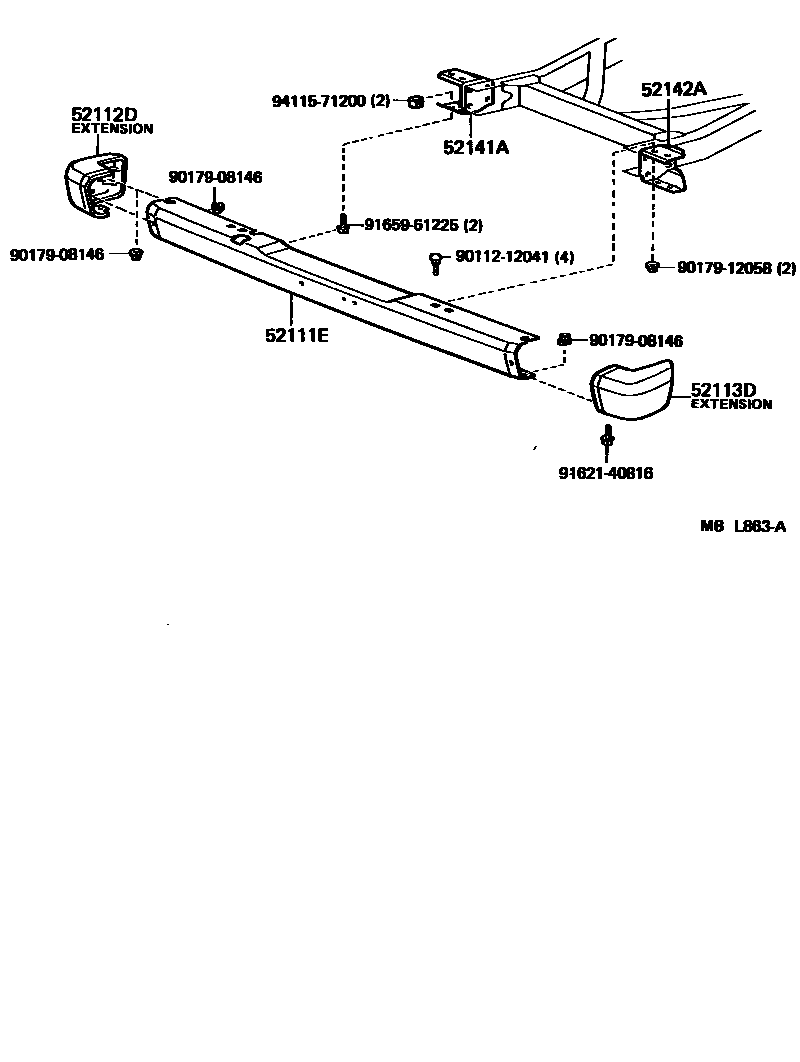

FRONT BUMPER & BUMPER STAY

52111EBAR, FRONT BUMPER

main52111-90A03iFJ62198708-199001

52112DEXTENSION, FRONT BUMPER, RH

main52102-90A00iFJ62198708-199001

52113DEXTENSION, FRONT BUMPER, LH

main52103-90A00iFJ62198708-199001

52141AARM, FRONT BUMPER, UPPER RH

main52141-60050iFJ62198708-199001

52142AARM, FRONT BUMPER, UPPER LH

main52142-60040iFJ62198708-199001

9011212041

main90112-12041

9017908146

main90179-08146

9017912058

main90179-12058

9162140816

main91621-40816

9165961225

main91659-61225

9411571200

main94115-71200

11 parts on this diagram · 1 diagram in section
