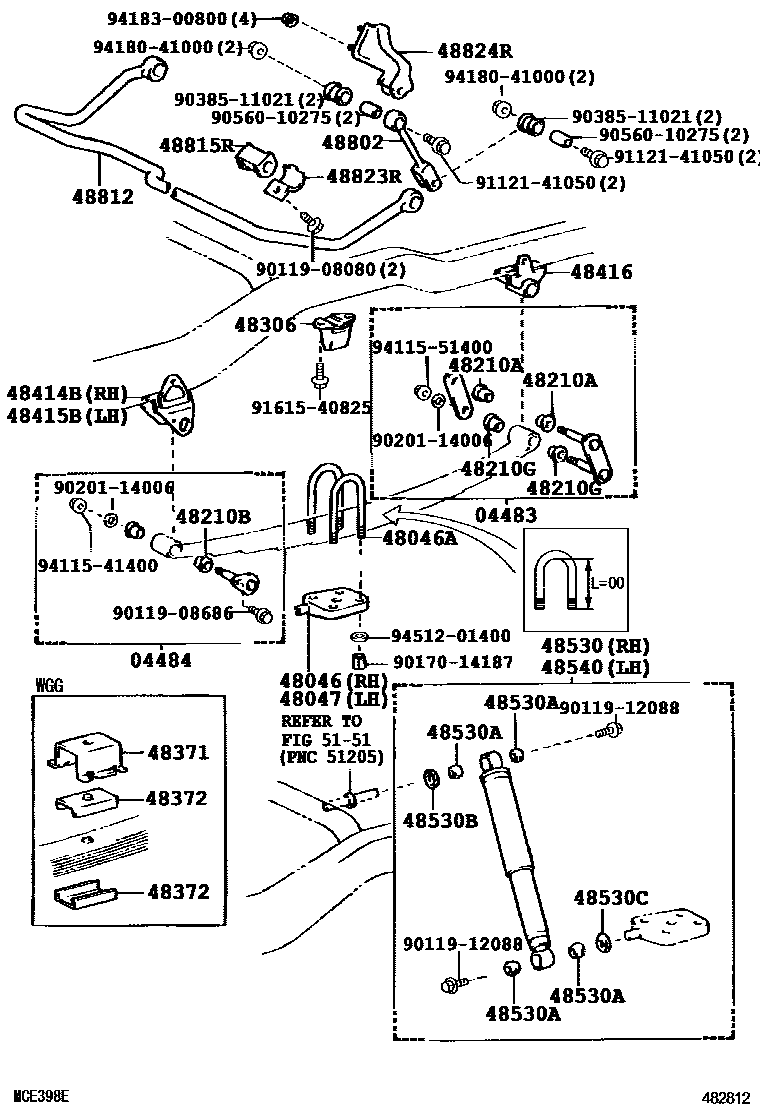

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
04484PIN KIT, REAR SPRING
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
L=200
L=205
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48306BUMPER SUB-ASSY, REAR SPRING
48371RETAINER, REAR SPRING PAD
48372PAD, REAR SPRING
48414BBRACKET, SPRING, NO.3 RH
48415BBRACKET, SPRING, NO.3 LH
48416BRACKET, SPRING, NO.4
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-60190
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48541-60050
48802LINK SUB-ASSY, STABILIZER
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48823RCOVER, STABILIZER LINK(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
5151FRAME
9011908080
main90119-08080
9011908686
main90119-08686
9011912088
main90119-12088
9017014187
main90170-14187
9020114006
main90201-14006
9038511021
main90385-11021
9056010275
main90560-10275
9112141050
main91121-41050
9161540825
main91615-40825
9411541400
main94115-41400
9411551400
main94115-51400
9418041000
main94180-41000
9418300800
main94183-00800
9451201400
main94512-01400
40 parts on this diagram · 2 diagrams in section
