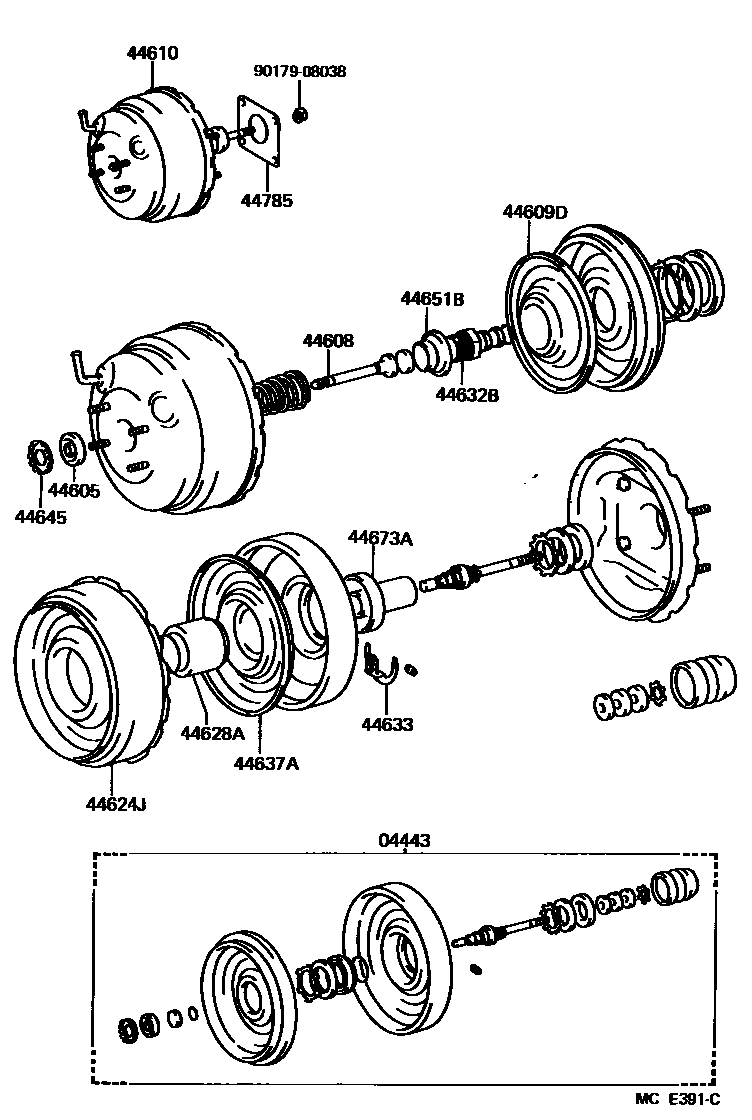

BRAKE BOOSTER & VACUUM TUBE
04443BOOSTER KIT, BRAKE
44605PLATE & SEAL SUB-ASSY, BOOSTER
44608PUSH ROD SUB-ASSY, BOOSTER
44609DPLATE & RETAINER SUB-ASSY, BOOSTER
44610BOOSTER ASSY, BRAKE
44624JPLATE, BOOSTER CENTER
44628ABODY, BOOSTER CENTER
44632BHUB, BOOSTER REACTION DISK
44633KEY, BOOSTER VALVE PLUNGER
44637APLATE, BOOSTER DIAPHRAGM
44645RETAINER, BOOSTER PUSH ROD SEAL
44651BNUT, BOOSTER
44673ABODY, BOOSTER VALVE
44785GASKET, BRAKE BOOSTER
9017908038
main90179-08038
15 parts on this diagram · 2 diagrams in section
