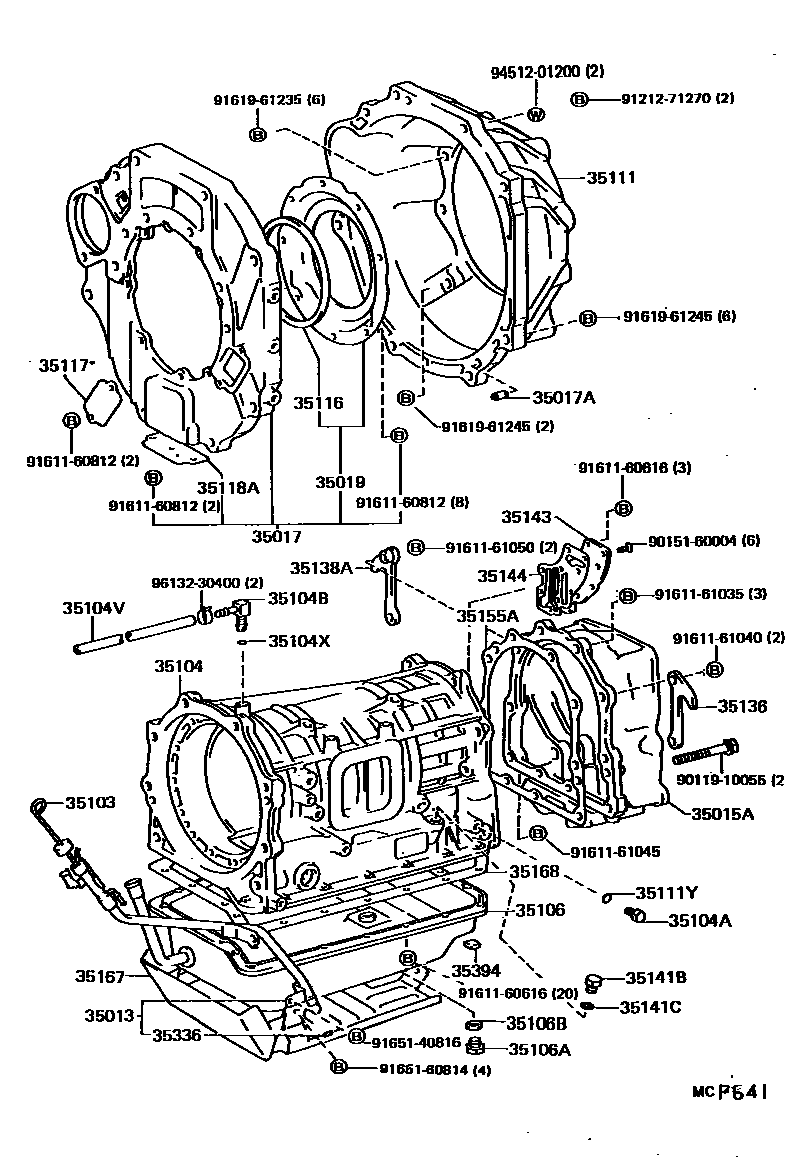

TRANSMISSION CASE & OIL PAN (ATM)

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-60011iFJ62198708-199001

35015AADAPTER SUB-ASSY, TRANSMISSION CASE, REAR

main35015-60010iFJ62198708-198712

main35015-60011iFJ62198712-199001

35017ADAPTER SUB-ASSY, TRANSMISSION HOUSING, FRONT

main35017-60010iFJ62198708-199001

35017APIN, STRAIGHT(FOR TRANSMISSION HOUSING ADAPTER, FRONT)

main90250-10192×2iFJ62198708-199001

35019COVER SUB-ASSY, TRANSMISSION CASE DUST

main35019-60010iFJ62198708-199001

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-60011iFJ62198708-198803

main35103-60012iFJ62198803-199001

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60010iFJ62198708-198909

main35104-60011iFJ62198909-199001

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×6iFJ62198708-198909

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03094iFJ62198708-199001

35104VHOSE (FOR BREATHER PLUG)

main90445-11072iFJ62198708-199001

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iFJ62198708-199001

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60041iFJ62198708-198803

main35106-60042iFJ62198803-198906

main35106-60043iFJ62198906-199001

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18057iFJ62198708-199001

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iFJ62198708-199001

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60010iFJ62198708-199001

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×6iFJ62198708-198909

35116SEAL, TRANSMISSION CASE DUST

main35116-60010iFJ62198708-199001

35117COVER, ADAPTER, NO.1

main35117-60010iFJ62198708-199001

35118ACOVER, ADAPTER, NO.2

main35118-60010iFJ62198708-199001

35136HANGER, TRANSMISSION,NO.1

main35136-60010iFJ62198708-199001

35138AHANGER, TRANSMISSION, NO.2

main35136-60010iFJ62198712-199001

main35138-60010iFJ62198708-198712

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-16010iFJ62198708-199001

35141CWASHER, PLATE (FOR AUTOMATIC TRANSMISSION CASE)

main90201-16013iFJ62198708-199001

35143COVER, TRANSMISSION CASE, REAR

main35143-36010iFJ62198708-199001

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-36010iFJ62198708-199001

35155AGASKET, TRANSMISSION CASE ADAPTER

main35182-36010iFJ62198708-199001

35167PROTECTOR, TRANSMISSION OIL PAL

main35167-60011iFJ62198708-198906

main35167-60012iFJ62198906-199001

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-36010iFJ62198708-199001

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iFJ62198708-199001

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iFJ62198708-199001

9011910055

main90119-10055

9015160004

main90151-60004

9121271270

main91212-71270

9161160616

main91611-60616

9161160812

main91611-60812

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9161161050

main91611-61050

9161961235

main91619-61235

9161961245

main91619-61245

9165140816

main91651-40816

9165160814

main91651-60814

9451201200

main94512-01200

9613230400

main96132-30400

45 parts on this diagram · 1 diagram in section
