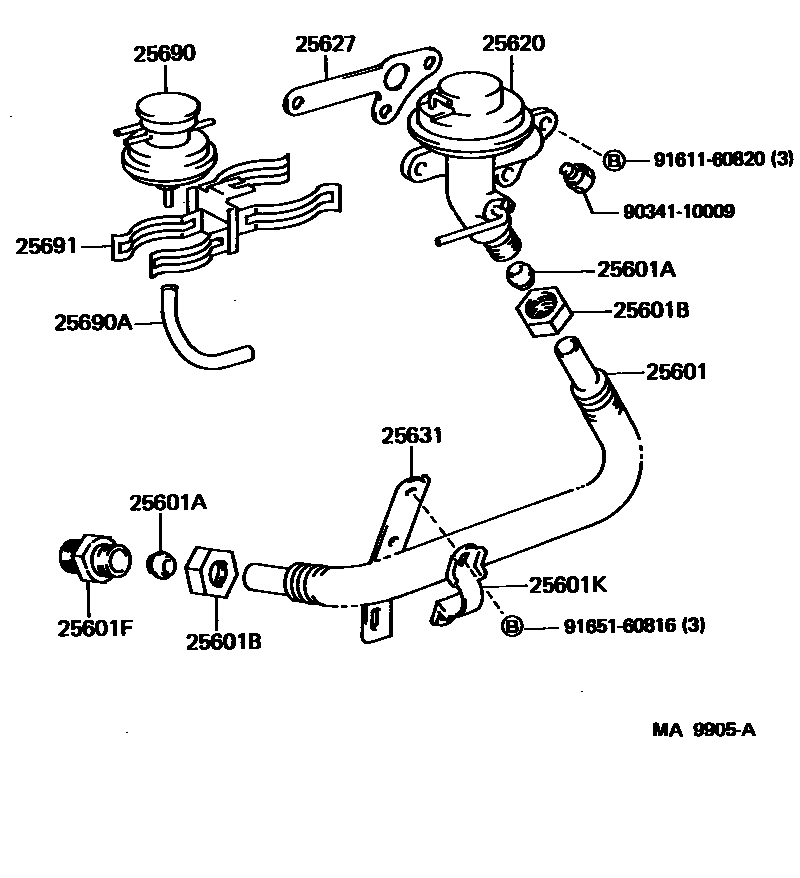

EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601FUNION(FOR EGR PIPE, NO.1)
25601KCLAMP(FOR EGR PIPE)
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
25631STAY, EGR PIPE, NO.1
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9034110009
main90341-10009
9161160820
main91611-60820
9165160816
main91651-60816
14 parts on this diagram · 1 diagram in section
