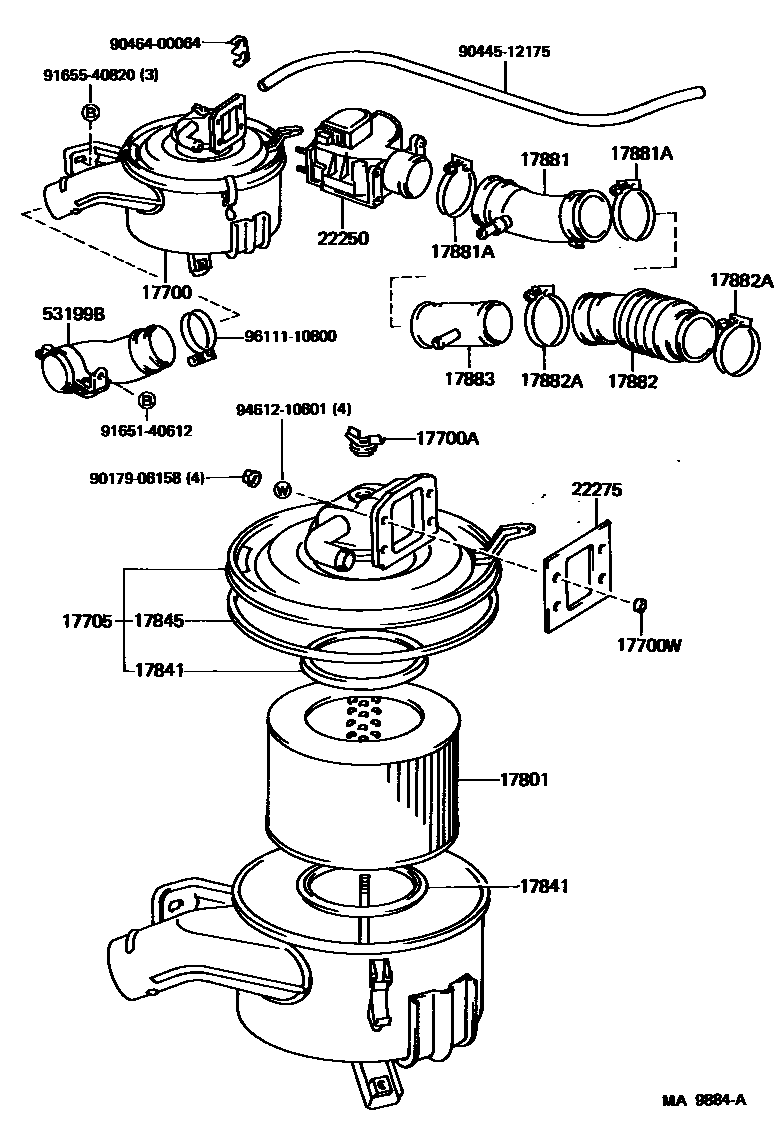

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-61230i3FE..FJ62198708-199001

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i3FE..FJ62198708-199001

17700WSPACER(FOR AIR CLEANER)

main90560-06009×4i3FE..FJ62198708-199001

17705CAP SUB-ASSY, AIR CLEANER

main17705-61130i3FE..FJ62198708-199001

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-68020i3FE..FJ62198708-199001

17841GASKET, FILTER ELEMENT

main17841-68010×2i3FE..FJ62198708-199001

17845GASKET, AIR CLEANER CAP

main17845-61011i3FE..FJ62198708-199001

17881HOSE, AIR CLEANER, NO.1

main17881-61090i3FE..FJ62198708-199001

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10930×2i3FE..FJ62198708-199001

17882HOSE, AIR CLEANER, NO.2

main17882-61070i3FE..FJ62198708-199001

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10930×2i3FE..FJ62198708-199001

17883HOSE, AIR CLEANER, NO.3

main17883-61020i3FE..FJ62198708-199001

22250METER ASSY, INTAKE AIR FLOW

main22250-61010i3FE..FJ62198708-199001

22275GASKET, AIR FLOW METER

main22275-43010i3FE..FJ62198708-199001

53199BDUCT SUB-ASSY, COOL AIR INTAKE

main53207-90A00iFJ62198708-199001

9017906158

main90179-06158

9044512175

main90445-12175

9046400064

main90464-00064

9165140612

main91651-40612

9165540820

main91655-40820

9461210601

main94612-10601

9611110800

main96111-10800

22 parts on this diagram · 1 diagram in section
