Toyota LAND CRUISER — WATER PUMP
1503ENGINE OIL COOLER
16100PUMP ASSY, ENGINE WATER
16110PUMP ASSY, WATER, W/O COUPLING
16117PLATE, WATER PUMP
16124GASKET, WATER PUMP COVER
16171SEAT, WATER PUMP PULLEY
16210COUPLING ASSY, FLUID
16241BOLT, STUD(FOR WATER PUMP COUPLING)
16259GASKET, FAN
16271GASKET, WATER PUMP
16371PULLEY, FAN
9011610142
9017908123
9017910147
9161161065
9322018016
16 parts on this diagram · 1 diagram in section

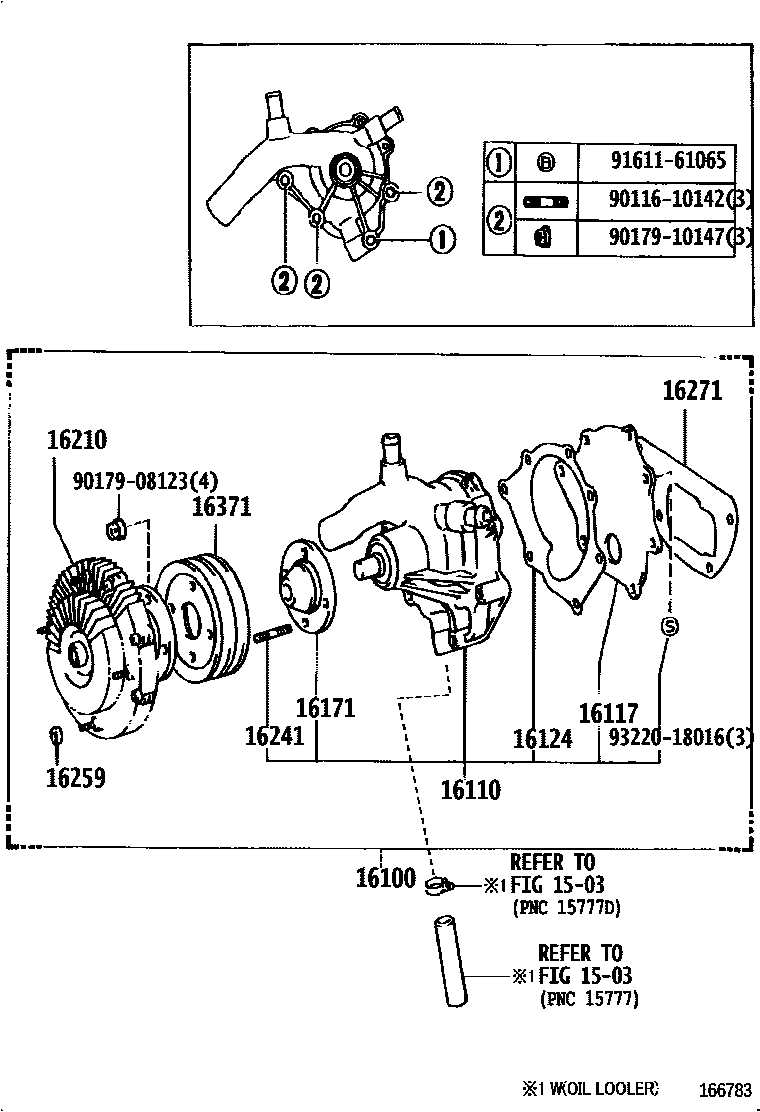

WATER PUMP for Toyota LAND CRUISER
This section contains 16 genuine Toyota parts for the WATER PUMP system of the Toyota LAND CRUISER. Key components include: ENGINE OIL COOLER, PUMP ASSY, ENGINE WATER, PUMP ASSY, WATER, W/O COUPLING, PLATE, WATER PUMP, GASKET, WATER PUMP COVER.
