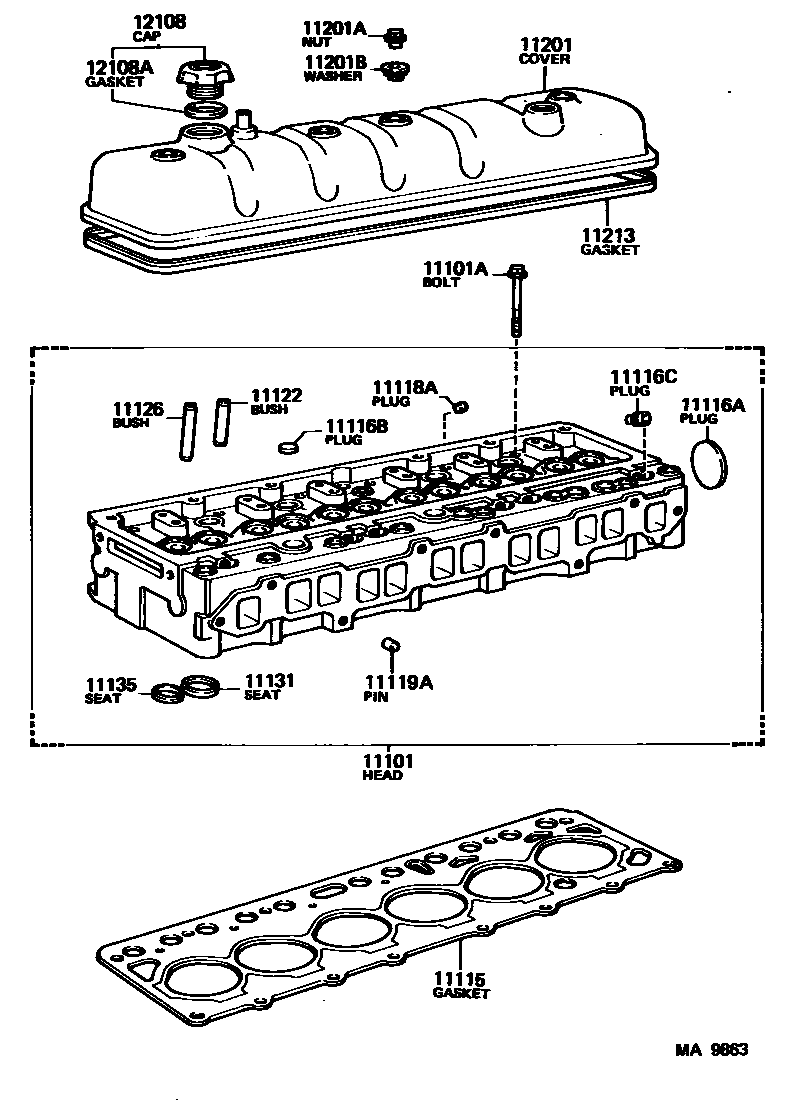

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
*13-1.75PX138-27
*13-1.75PX120.5-27
11115GASKET, CYLINDER HEAD
T=1.40
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11118APLUG, STRAIGHT, NO.1
11119APIN, STRAIGHT, NO.1
L=18,OD=8
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
18 parts on this diagram · 1 diagram in section
