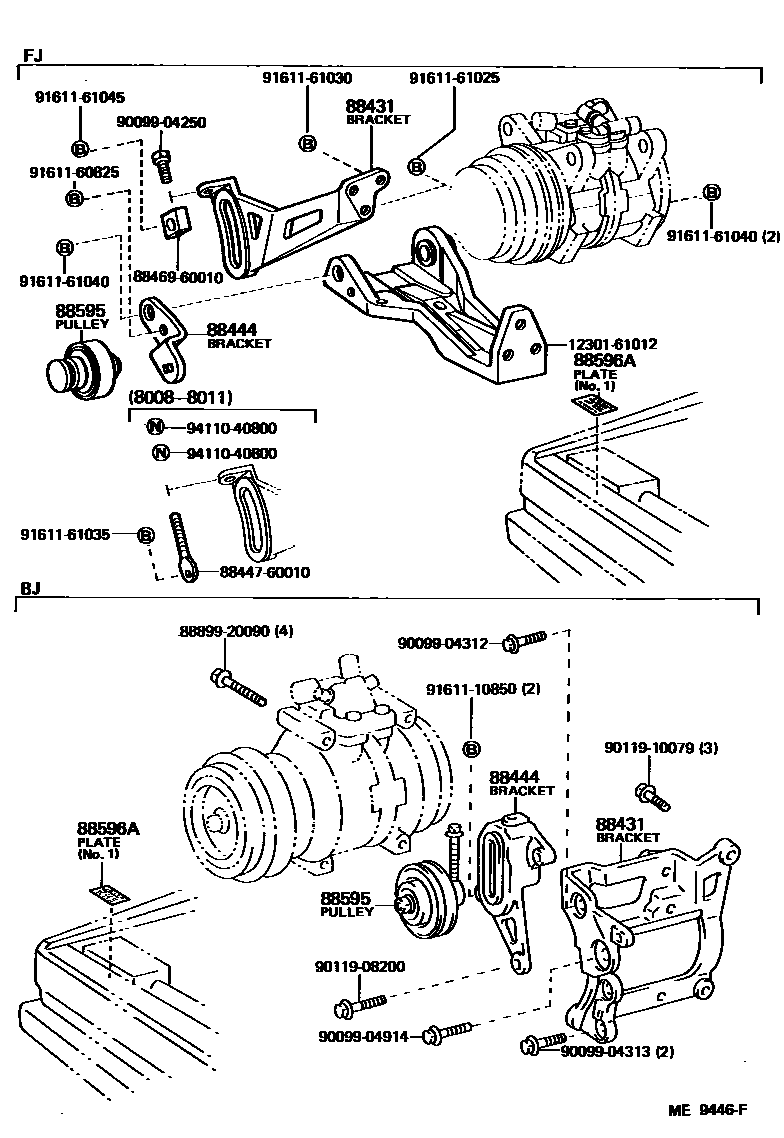

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0004 1 0007 1 0008 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36190iBJ60198411-198510

main88431-60060iHJ60198510-198708

main88437-60100iFJ60..USA198008-198011

main88437-60170iFJ60..USA198011-198708

88444BRACKET, IDLE PULLEY

main88444-36110iBJ60198411-198510

main88444-60020iFJ60..USA198008-198708

main88444-60041iHJ60198510-198708

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12160iBJ60198411-198510

main88440-20060iFJ60..USA198008-198708

main88440-35010iHJ60198510-198708

88596APLATE, CAUTION

main88356-12010iFJ60198608-198708

NO.2

main88596-12010iBJ60,FJ60,HJ60198411-198608

NO.1

main88723-12010iFJ60,HJ60198608-198708

NO.1

1230161012BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH

main12301-61012

8844760010PLATE, COMPRESSOR BELT ADJUSTING

main88447-60010

8846960010SWITCH, PRESSURE CONTROL

main88469-60010

8889920090COVER, EVAPORATOR

main88899-20090

9009904250

main90099-04250

9009904312

main90099-04312

9009904313

main90099-04313

9009904914

main90099-04914

9011908200

main90119-08200

9011910079

main90119-10079

9161110850

main91611-10850

9161160825

main91611-60825

9161161025

main91611-61025

9161161030

main91611-61030

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9411040800

main94110-40800

22 parts on this diagram · 5 diagrams in section
