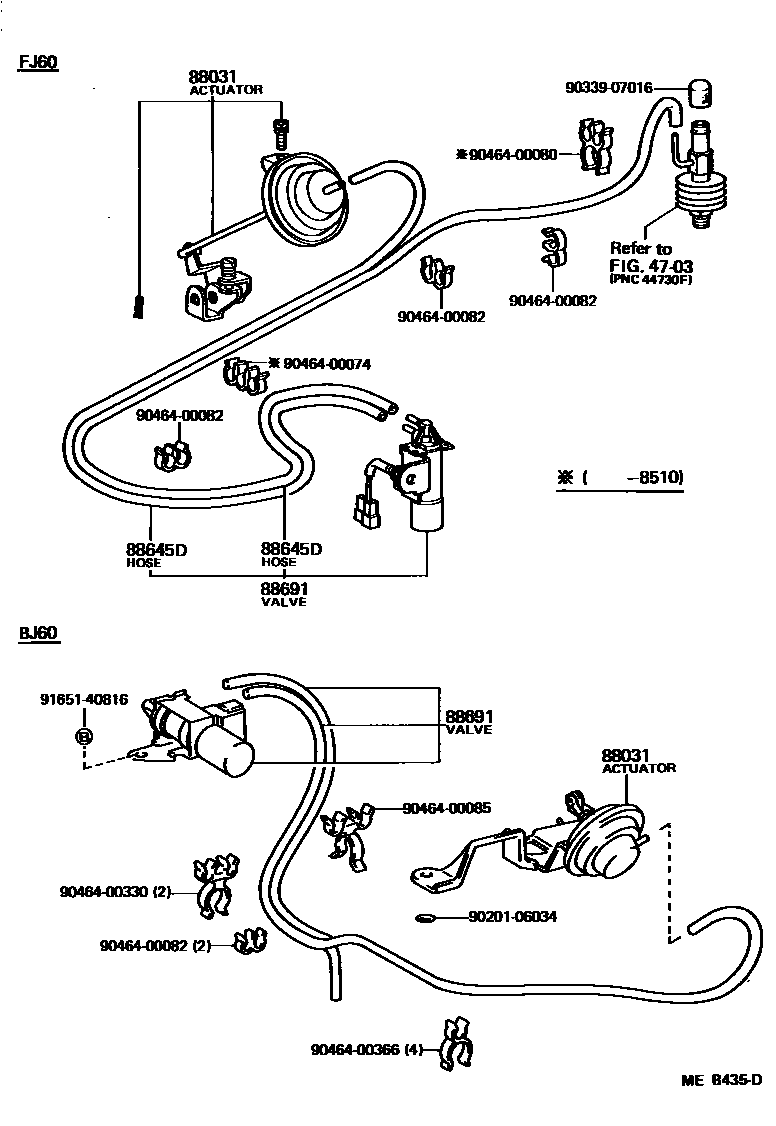

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0003 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

88031ACTUATOR SET, IDLE-UP

main88031-60010iFJ60..USA198008-198604

main88031-60030iHJ60..5F198510-198708

main88031-60040iBJ60198411-198510

main88031-60050iHJ60..4FC198510-198708

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10095iFJ60..USA198008-198504

*H,L=750,MARK=#0

main95411-19960iFJ60..USA198008-198504

*H,L=480,MARK=#*

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-90A00iFJ60..USA198008-198504

main88690-90A02iBJ60198411-198510

main88690-90A05iHJ60..5F198510-198708

main88690-90A09iHJ60..4FC; HJ60..5F198510-198708

W/*ELC

main88690-90A10iFJ60198504-198708

9020106034

main90201-06034

9033907016

main90339-07016

9046400074

main90464-00074

9046400080

main90464-00080

9046400082

main90464-00082

9046400085

main90464-00085

9046400330

main90464-00330

9046400366

main90464-00366

9165140816

main91651-40816

13 parts on this diagram · 2 diagrams in section
