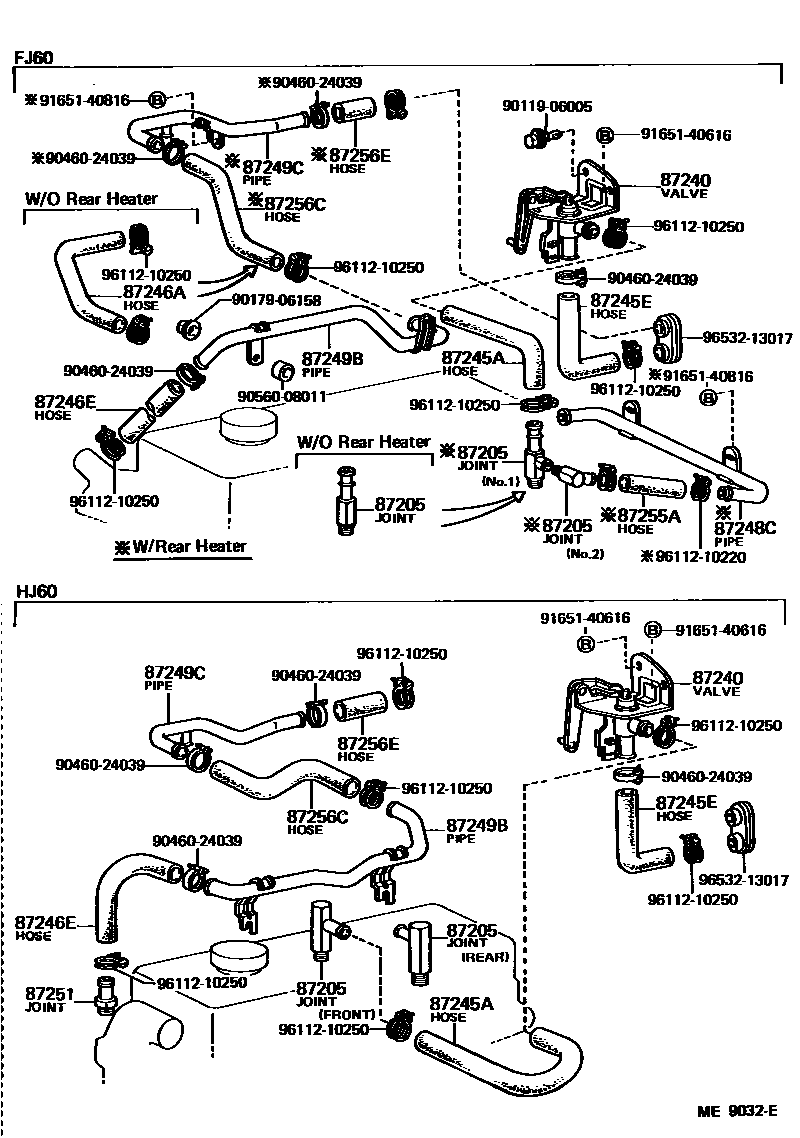

HEATING & AIR CONDITIONING - WATER PIPING
87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE
W/RR HEATER NO.1
W/RR HEATER NO.2
RR HEATER
FR HEATER
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
L=500
87245EHOSE, HEATER WATER, INLET E
87246AHOSE, HEATER WATER, OUTLET A
87246EHOSE, HEATER WATER, OUTLET E
*H,L=210,W/COOLER
*H,L=320
*H,L=55
*H,L=55
*H,L=210,W/COOLER
*H,L=320
*H,L=320
87248CPIPE, HEATER WATER INLET, C
87249BPIPE, HEATER WATER OUTLET, B
87249CPIPE, HEATER WATER OUTLET, C
87251JOINT OR UNION, WATER HOSE THROUGH
W/RR HEATER,RH
W/RR HEATER,RH
87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
*H,L=160
*H,L=55
*H,L=55
*H,L=150
*H,L=150
87256CHOSE, REAR HEATER WATER OUTLET, C
87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
*H,L=60
*H,L=60
*H,L=60
9011906005
main90119-06005
9017906158
main90179-06158
9046024039
main90460-24039
9056008011
main90560-08011
9165140616
main91651-40616
9165140816
main91651-40816
9611210220
main96112-10220
9611210250
main96112-10250
9653213017
main96532-13017
22 parts on this diagram · 5 diagrams in section
