HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

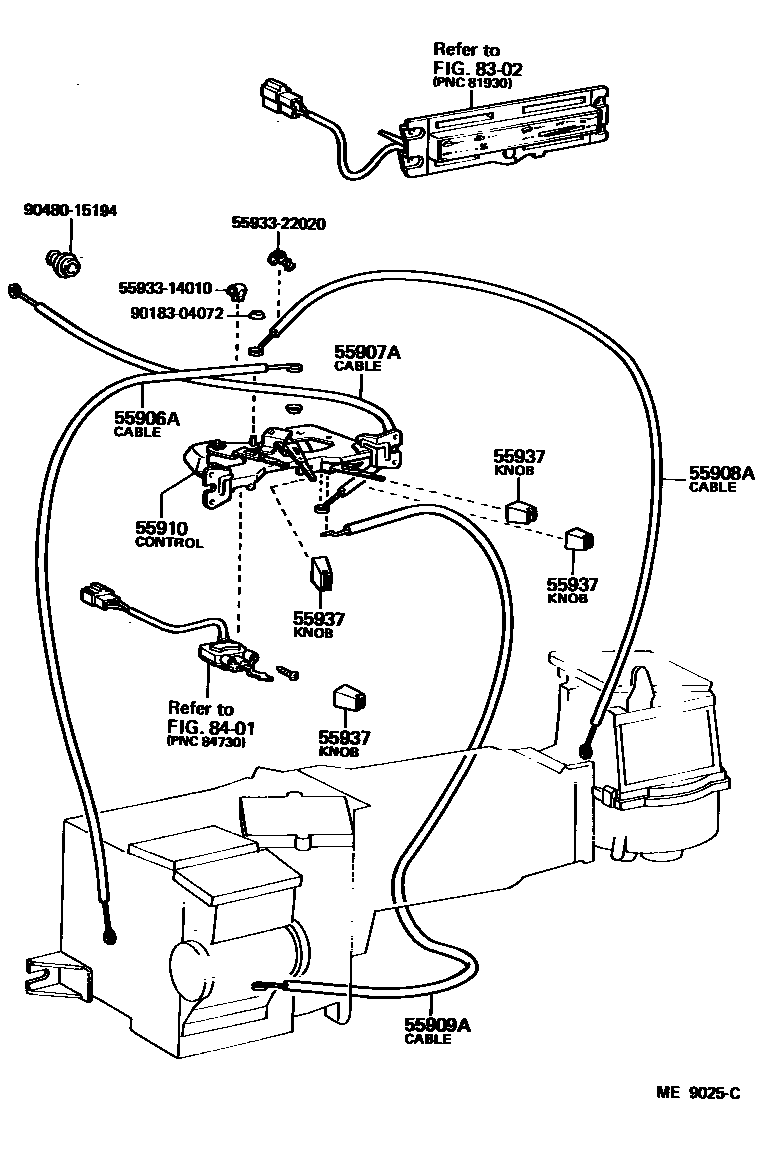

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55905-90A00iBJ60,FJ60,HJ60198008-198708

L=350

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main87286-90A01iBJ60,FJ60,HJ60198008-198708

L=490

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90A00iBJ60,FJ60,HJ60198008-198708

L=880

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55907-90A00iBJ60,FJ60,HJ60198008-198708

L=650

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55901-90A01iBJ60,FJ60,HJ60198008-198708

55937KNOB, HEATER CONTROL LEVER

main55905-22050×4iBJ60,FJ60,HJ60198008-198708

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593322020GUIDE, LEVER, NO.2

main55933-22020

9018304072

main90183-04072

9048015194

main90480-15194

12 parts on this diagram · 2 diagrams in section
