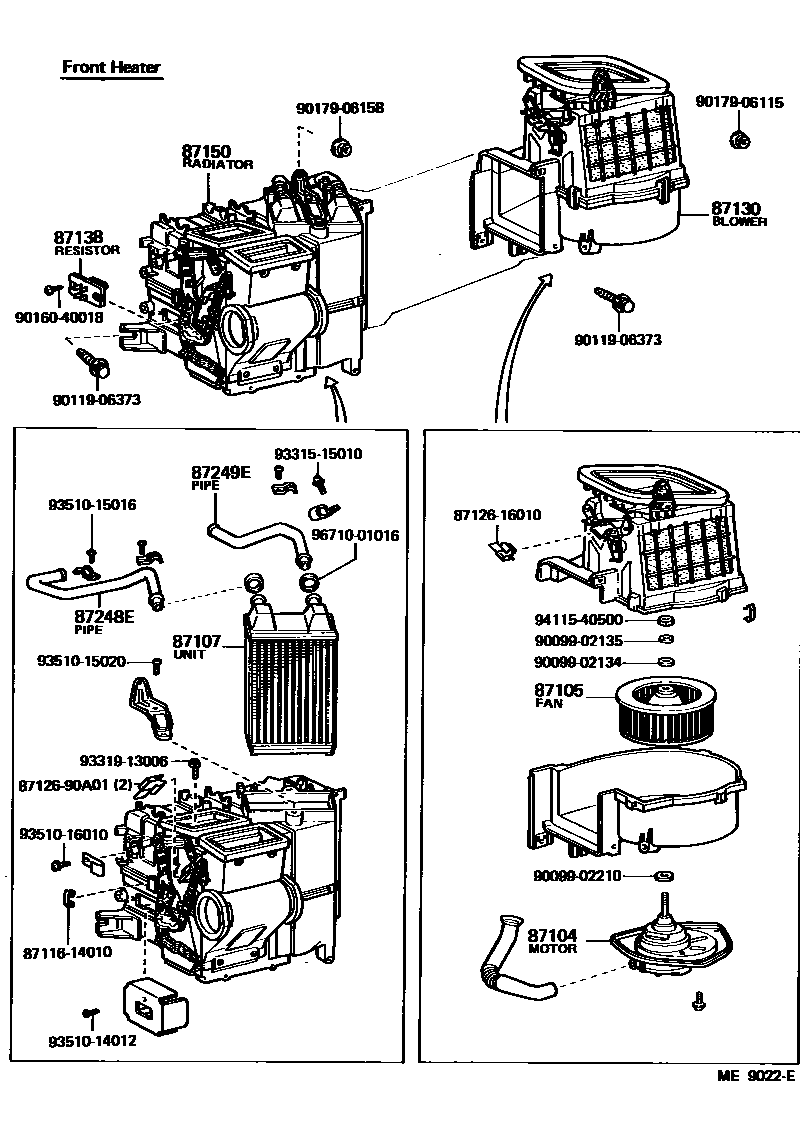

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-90A00iBJ60,FJ60198008-198708

main87104-90A06iHJ60198510-198708

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iBJ60,FJ60,HJ60198008-198708

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-90A00iBJ60,FJ60,HJ60198008-198708

87130BLOWER ASSY, HEATER, FRONT

main87130-90A01iBJ60,FJ60198008-198708

main87130-90A08iHJ60198510-198708

87138RESISTOR, HEATER BLOWER

main87138-22030iBJ60,FJ60198008-198708

main87138-90A00iHJ60198510-198708

87150RADIATOR ASSY, HEATER

main87150-90A01iFJ60198008-198504

main87150-90A03iBJ60198008-198411

main87150-90A09iFJ60,HJ60198504-198708

main87150-90A11iBJ60198411-198510

87248EPIPE, HEATER WATER INLET, E

main87248-90A01iBJ60,FJ60,HJ60198008-198708

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87248-90A03iFJ60,HJ60198008-198708

main87248-90A05iBJ60198008-198510

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8712616010CLAMP, HEATER CONTROL

main87126-16010

8712690A01CLAMP, HEATER CONTROL

main87126-90A01

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9011906373

main90119-06373

9016040018

main90160-40018

9017906115

main90179-06115

9017906158

main90179-06158

9331515010

main93315-15010

9331913006

main93319-13006

9351014012

main93510-14012

9351015016

main93510-15016

9351015020

main93510-15020

9351016010

main93510-16010

9411540500

main94115-40500

9671001016

main96710-01016

26 parts on this diagram · 3 diagrams in section
