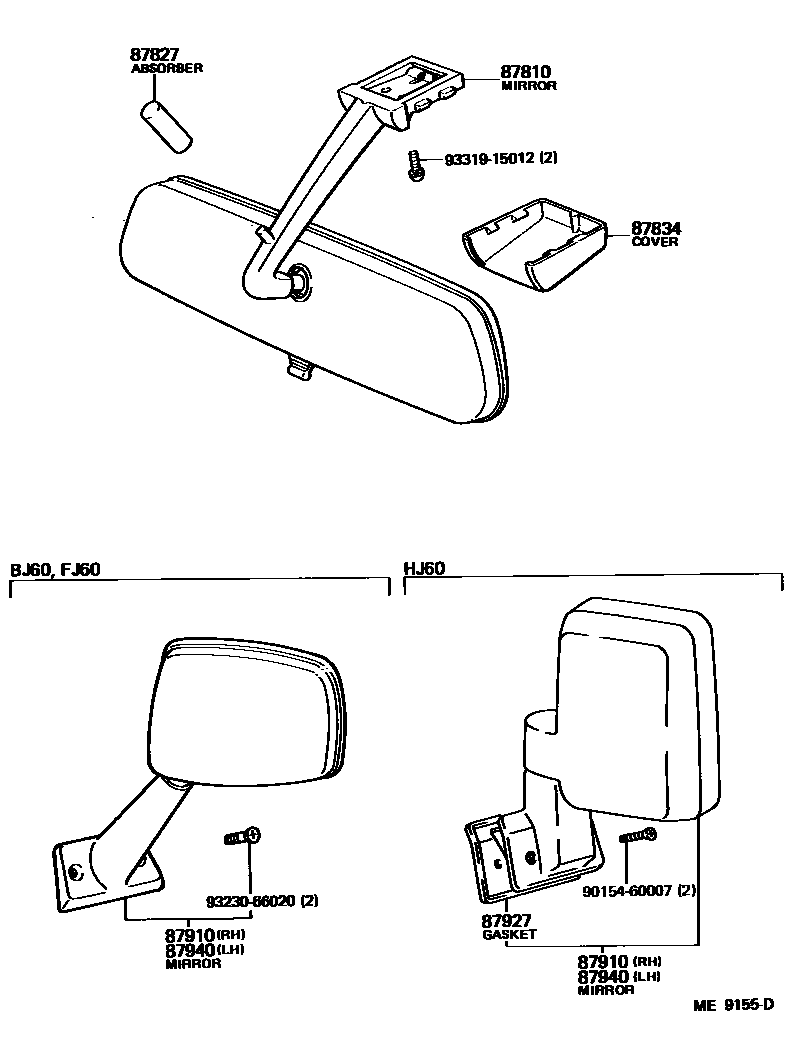

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-90A03iBJ60,FJ60,HJ60198008-198708

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-90A00iBJ60,FJ60,HJ60198008-198708

L=40

main87828-90A01iBJ60,FJ60,HJ60198008-198708

L=45

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-14011-18iBJ60,FJ60,HJ60198008-198708

IVORY,IVORY

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-69015iBJ60,FJ60198008-198512

main87910-90A00iFJ60198512-198708

main87910-90A08iHJ60198510-198708

main87910-90A10iHJ60198510-198708

MHROME PLATED

87927PACKING, REAR VIEW OUTSIDE MIRROR STAY

main87911-90A04×2iHJ60198510-198606

main87911-90A05×2iHJ60198606-198708

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-69015iBJ60,FJ60198008-198512

main87940-90A00iFJ60198512-198708

main87940-90A07iHJ60198510-198708

main87940-90A09iHJ60198510-198708

MHROME PLATED

9015460007

main90154-60007

9323066020

main93230-66020

9331915012

main93319-15012

9 parts on this diagram · 1 diagram in section
