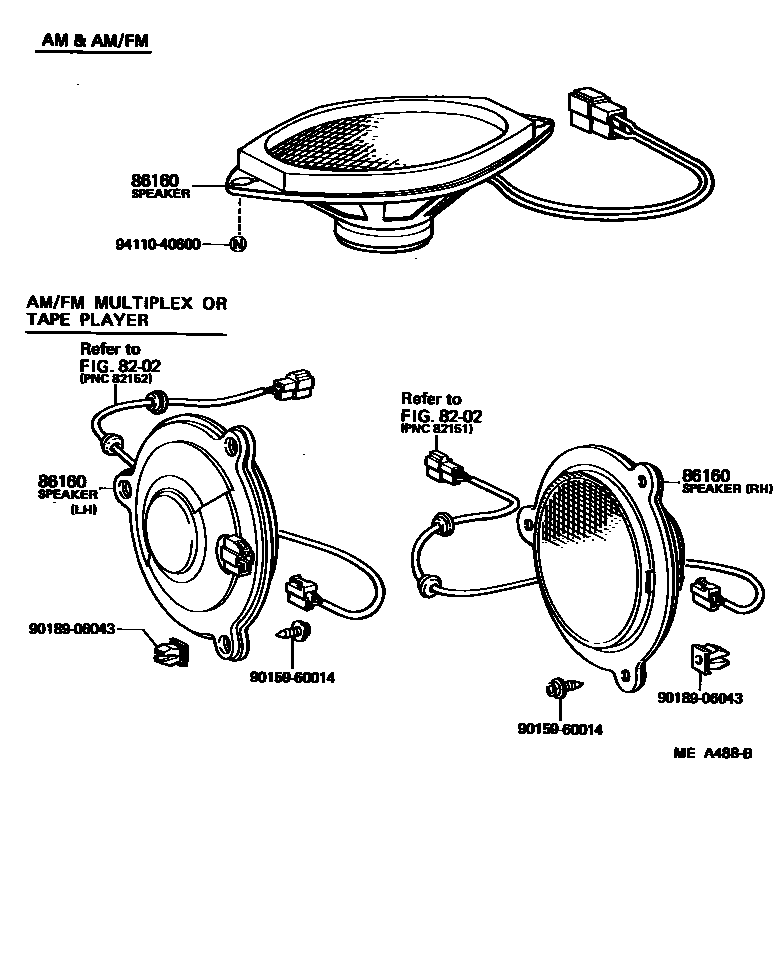

SPEAKER

8202WIRING & CLAMP

→ Go to FIG 82-02

86160SPEAKER ASSY, FRONT NO.1

main86160-22060iBJ60;FJ60..USA198008-198604

*19 OR TAPE PLAYER,RH

main86160-22070iBJ60;FJ60..USA198008-198604

*19 OR TAPE PLAYER,LH

main86160-90A00iFJ60..CND198008-198110

main86160-90A01iHJ60198510-198708

*19 OR TAPE PLAYER,RH

main86160-90A02iFJ60198604-198708

*19 OR TAPE PLAYER,LH

9015960014

main90159-60014

9018906043

main90189-06043

9411040600

main94110-40600

5 parts on this diagram · 1 diagram in section
