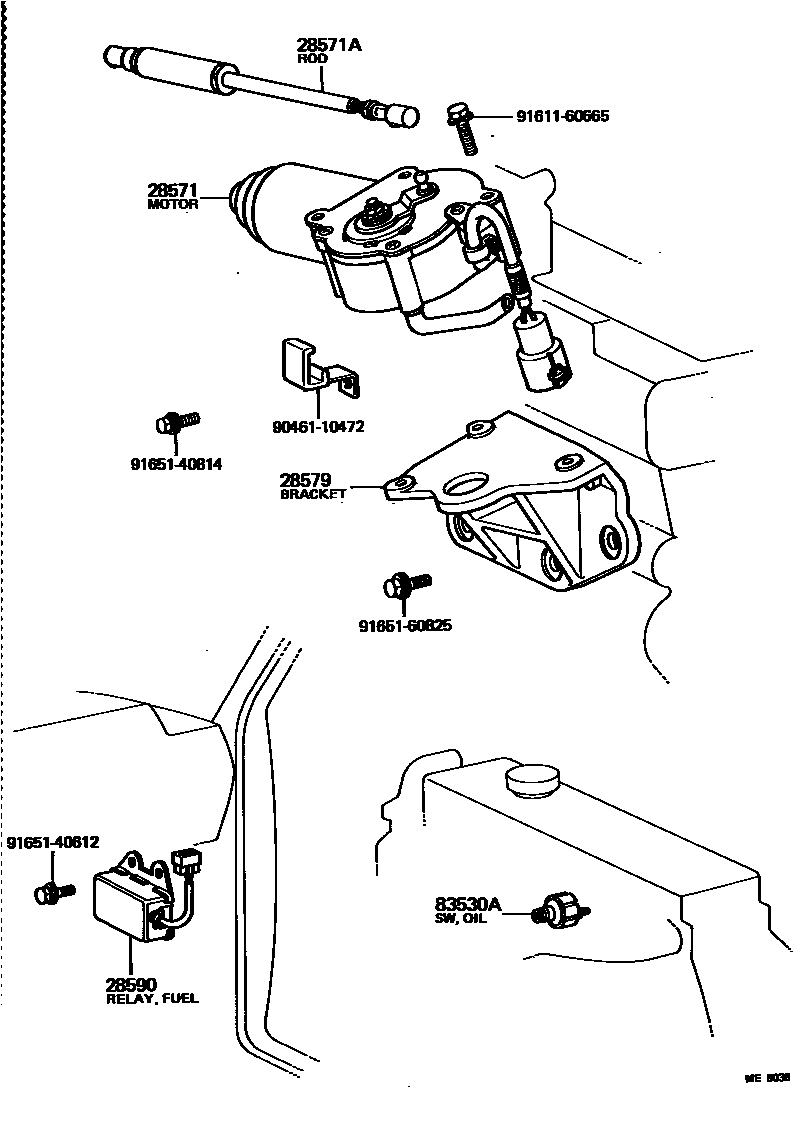

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

0001 1 0002 1

28571MOTOR, FUEL CONTROL

main28571-56120i3B..BJ60198008-198510

main28571-56150i2H..HJ60..5F198510-198708

28571AROD, FUEL CONTROL MOTOR

main84580-36021i3B..BJ60198008-198510

main84580-36040i2H..HJ60..5F198510-198708

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i3B..BJ60198008-198510

28590RELAY ASSY, FUEL CONTROL

main28590-56090i3B..BJ60198008-198510

main28590-56100i2H..HJ60..5F198510-198708

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010iBJ60198008-198502

main83530-14030iBJ60,HJ60..5F198502-198708

9046110472

main90461-10472

9161160665

main91611-60665

9165140612

main91651-40612

9165140814

main91651-40814

9165160825

main91651-60825

10 parts on this diagram · 2 diagrams in section
