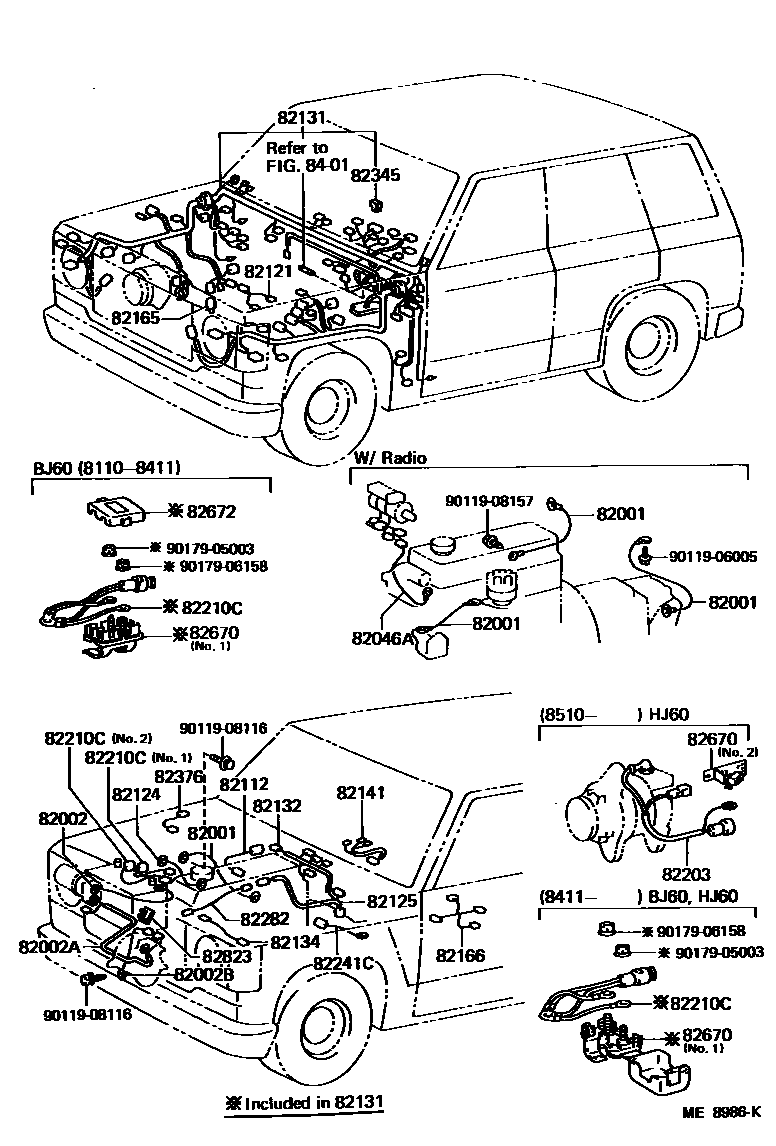

WIRING & CLAMP
82001CABLE, BOND, NO.1
MISSION-BODY,W/RADIO
DIST-ENGINE,W/RADIO
MISSION-BODY,W/RADIO
E/G-HEATER VALVE,W/RADIO
E/G-HEATER VALVE,W/RADIO
82002CABLE, BATTERY TO MAGNET SWITCH
82002ACABLE, MAGNET SWITCH TO WINCH
82002BCABLE, WINCH TO GROUND
82046WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
W/*RW
82046AWIRE SUB-ASSY, BODY GROUND, NO.1
IGNITION COIL,W/RADIO
82112WIRE, ENGINE ROOM, NO.2
82121WIRE, ENGINE
82125WIRE, TRANSMISSION
82131WIRE, COWL
W/IC REGULATOR
STD TYPE REGULATOR
W/IC REGULATOR
W/IC REGULATOR
STD TYPE REGULATOR
W/IC REGULATOR
STD TYPE REGULATOR
W/IC REGULATOR
STD TYPE REGULATOR
W/IC REGULATOR
STD TYPE REGULATOR
82132WIRE, COWL, NO.2
W/*REH,*RW OR *MDA
W/*REH,*RW OR *MDA
82134WIRE, COWL, NO.4
82141WIRE, INSTRUMENT PANEL
W/DIFF LOCK
82165WIRE, FRAME, NO.2
82166WIRE, CONSOLE BOX
82203WIRE SUB-ASSY, ALTERNATOR
82210CFUSIBLE LINK
NO.1
N0.2,GLOW
L=120,GX2,Y,B
82282WIRE, DIFF LOCK INDICATOR
FR
RR
82345DIODE
CONNECTOR=2POLE
CONNECTOR=2POLE
CONNECTOR=4POLE
82670BLOCK ASSY, JUNCTION, NO.1
NO.1
NO.2
NO.1
82672COVER, JUNKTION BLOCK
82823CAP, TERMINAL, NO.1
8401SWITCH & RELAY & COMPUTER
9011906005
main90119-06005
9011908116
main90119-08116
9011908157
main90119-08157
9017905003
main90179-05003
9017906158
main90179-06158
31 parts on this diagram · 4 diagrams in section
