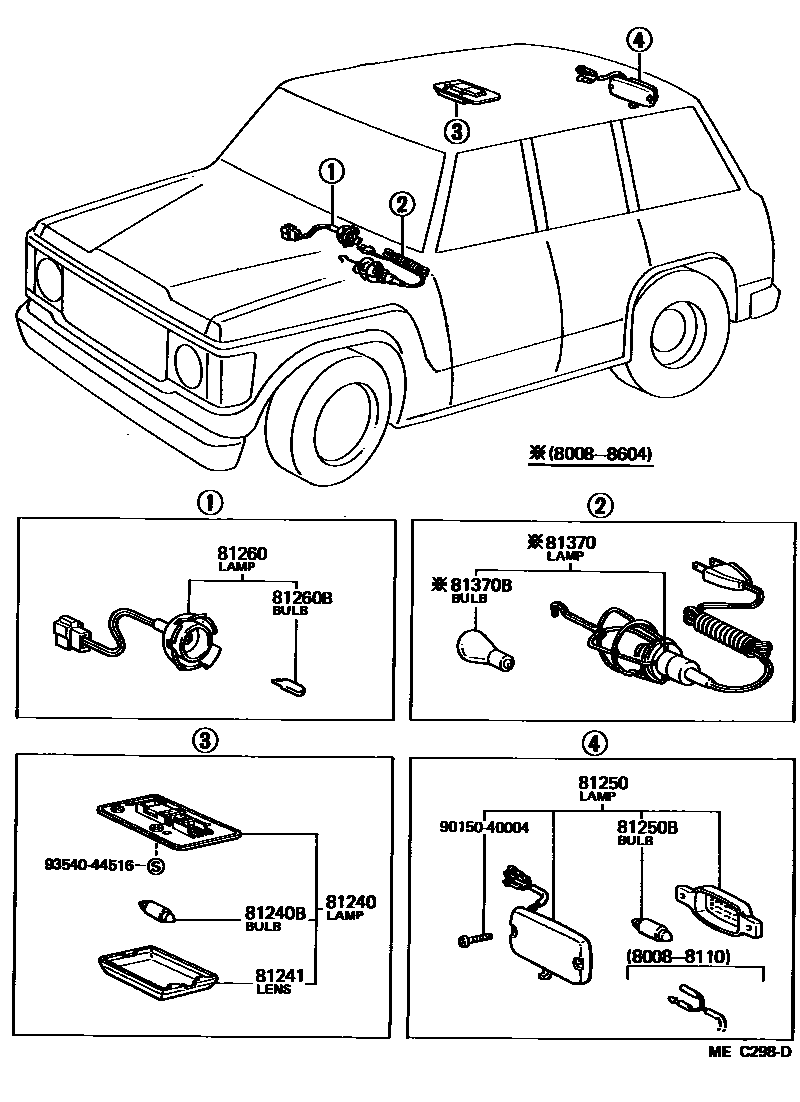

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-20060-08iFJ60198411-198504

IVORY,IVORY

main81240-22070-08iBJ60198411-198504

IVORY,IVORY

main81240-90K00iHJ60198510-198708

81240BBULB, ROOM LAMP, NO.1

main90981-16019iHJ60198510-198708

24V 10W,24V 10W

main99132-12100iBJ60,FJ60198008-198708

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iBJ60,FJ60,HJ60198008-198708

81250LAMP ASSY, ROOM, NO.2

main81240-95A03iBJ60,FJ60198008-198110

main81240-95A14iBJ60,FJ60198110-198312

main81240-95A15iHJ60198510-198708

main81240-95A16iBJ60,FJ60198312-198708

81250BBULB, ROOM LAMP, NO.2

main90981-11004iBJ60,FJ60198008-198708

12V 10W,12V 10W

main90981-16019iHJ60198510-198708

24V 10W,24V 10W

81260LAMP ASSY, GLOVE BOX

main81260-22030iBJ60198110-198510

main81260-90A00iHJ60198510-198708

81260BBULB(FOR GLOVE BOX)

main90981-11018iBJ60198110-198510

12V 1.2W W/O SOCKET,12V 1.2W

main90981-11022iHJ60198510-198708

24V 1.4W,24V 1.4W

81370LAMP ASSY, INSPECTION

main81370-60010iBJ60,FJ60198008-198604

81370BBULB, INSPECTION LAMP

main99132-11230iBJ60,FJ60198008-198604

12V 23W,12V 23W

9015040004

main90150-40004

9354044516

main93540-44516

11 parts on this diagram · 1 diagram in section
