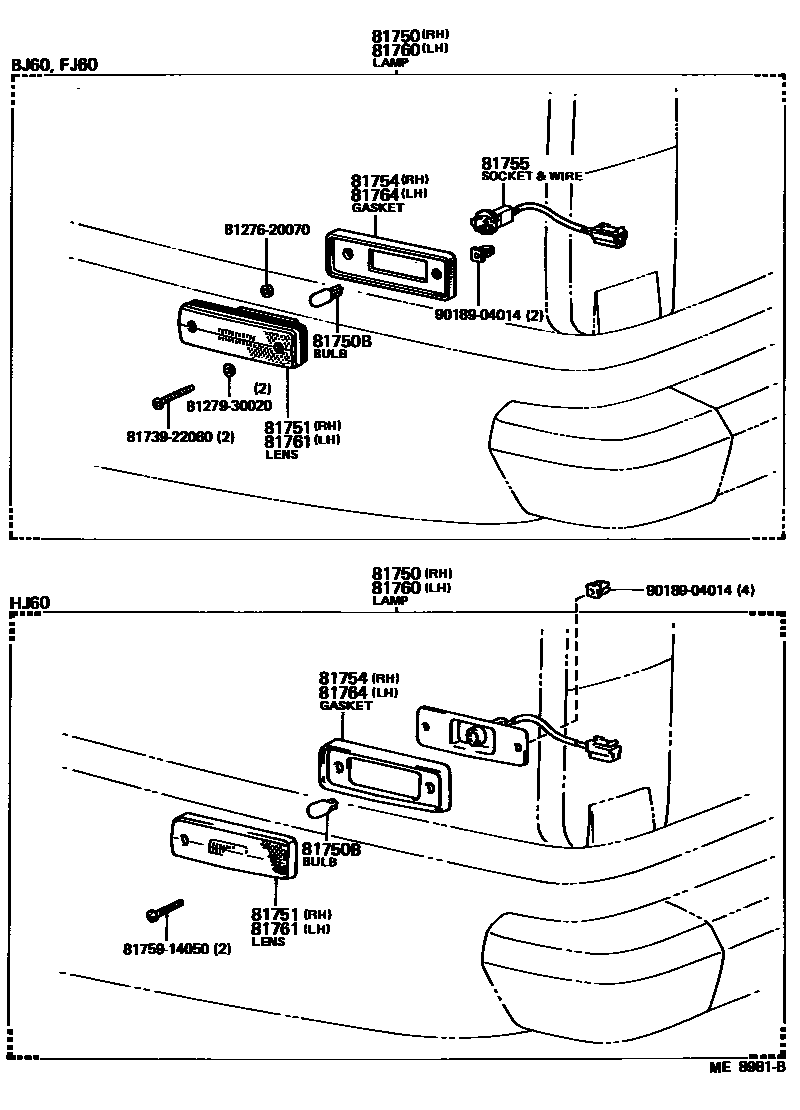

REAR SIDE MARKER LAMP

81750LAMP ASSY, REAR SIDE MARKER, RH

main81750-29145iBJ60,FJ60198008-198708

main81750-90A01iHJ60198510-198708

81750BBULB, REAR SIDE MARKER LAMP

main90981-11020×2iBJ60,FJ60198008-198708

12V 3.8W,12V 3.8W

main90981-12015×2iHJ60198510-198708

24V 5W,24V 5W

81751LENS, REAR SIDE MARKER LAMP, RH

main81751-14030iBJ60,FJ60198008-198708

main81751-89107iHJ60198510-198708

81754GASKET, REAR SIDE MARKER LAMP BODY, RH

main81732-90A01iHJ60198510-198708

main81754-91255iBJ60,FJ60198008-198708

81755SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP

main81755-20060iBJ60,FJ60198008-198708

81760LAMP ASSY, REAR SIDE MARKER, LH

main81750-29145iBJ60,FJ60198008-198708

main81760-90A00iHJ60198510-198708

81761LENS, REAR SIDE MARKER LAMP, LH

main81751-14030iBJ60,FJ60198008-198708

main81761-89107iHJ60198510-198708

81764GASKET, REAR SIDE MARKER LAMP BODY, LH

main81742-90A01iHJ60198510-198708

main81754-91255iBJ60,FJ60198008-198708

8127620070RIM, LICENSE PLATE LAMP

main81276-20070

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8173922060

main81739-22060

8175914050RETAINER, REAR SIDE MARKER LAMP, RH

main81759-14050

9018904014

main90189-04014

13 parts on this diagram · 1 diagram in section
