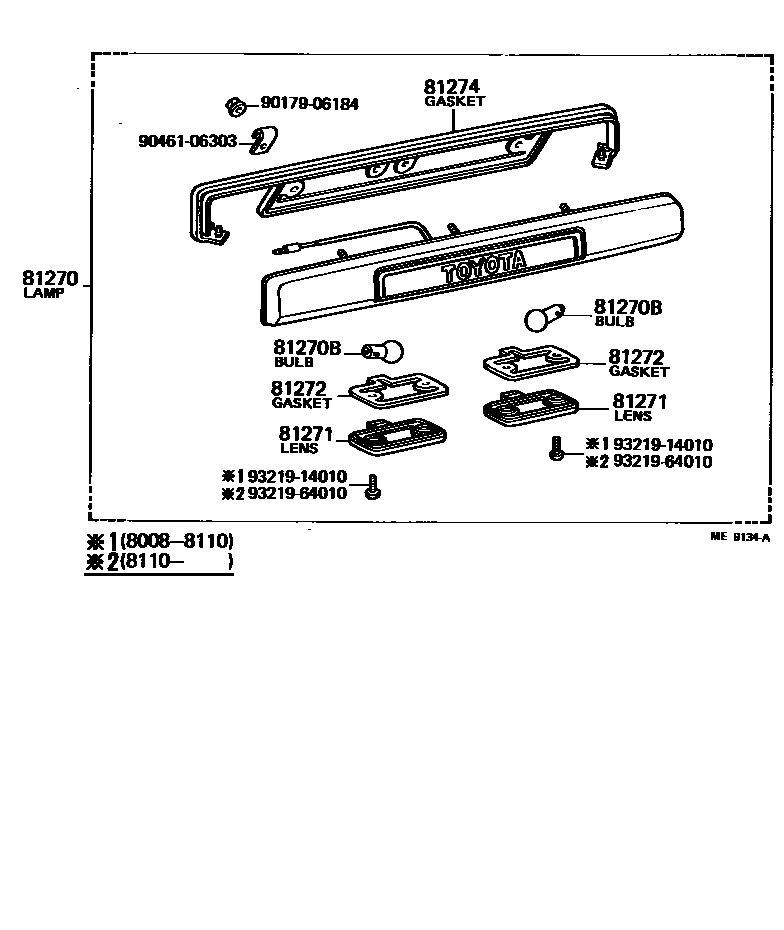

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-29505iBJ60,FJ60198008-198110

main81270-29645iBJ60,FJ60198110-198708

main81270-29665iHJ60198510-198708

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-16016×2iHJ60198510-198708

24V 5W,24V 5W

main99132-11075×2iBJ60,FJ60198008-198708

12V 7.5W,12V 7.5W

81271LENS, LICENSE PLATE LAMP

main81271-13070×2iBJ60,FJ60,HJ60198008-198708

81272GASKET, LICENSE PLATE LAMP LENS

main81272-13070×2iBJ60,FJ60,HJ60198008-198708

81274GASKET, LICENSE PLATE LAMP BODY

main81274-95A00iBJ60,FJ60,HJ60198008-198708

9017906184

main90179-06184

9046106303

main90461-06303

9321914010

main93219-14010

9321964010

main93219-64010

9 parts on this diagram · 1 diagram in section
