REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-69055iBJ60,FJ60198008-198411

main81550-69195iBJ60,FJ60198411-198512

main81550-90A09iFJ60198512-198612

main81550-90A10iHJ60198510-198612

main81550-90A11iFJ60198612-198708

main81550-90A16iHJ60198612-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iHJ60198510-198708

24V 21W,24V 21W(TURN OR BACK)

main90981-16015×2iHJ60198510-198708

24V 21/5W,24V 21/5W(STOP/TAIL)

main99132-11270×4iBJ60,FJ60198008-198708

12V 27W,12V 27W(TURN OR BACK)

main99132-21270×2iBJ60,FJ60198008-198708

12V 27/8W,12V 27/8W(STOP/TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-90A00iBJ60,FJ60198008-198708

main81551-90A10iHJ60198510-198708

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-90A00iBJ60,FJ60,HJ60198008-198708

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-90A12iFJ60,HJ60198612-198708

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-90A00iBJ60,FJ60,HJ60198008-198708

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81558-90A00iBJ60,FJ60,HJ60198008-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-69055iBJ60,FJ60198008-198411

main81560-69195iBJ60,FJ60198411-198512

main81560-90A09iFJ60198512-198612

main81560-90A10iHJ60198510-198612

main81560-90A11iFJ60198612-198708

main81560-90A16iHJ60198612-198708

81561LENS, REAR COMBINATION LAMP, LH

main81561-90A00iBJ60,FJ60198008-198708

main81561-90A10iHJ60198510-198708

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-90A00iBJ60,FJ60,HJ60198008-198708

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81564-90A12iFJ60,HJ60198612-198708

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-90A00iBJ60,FJ60,HJ60198008-198708

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81558-90A00iBJ60,FJ60,HJ60198008-198708

9015450001

main90154-50001

9018905013

main90189-05013

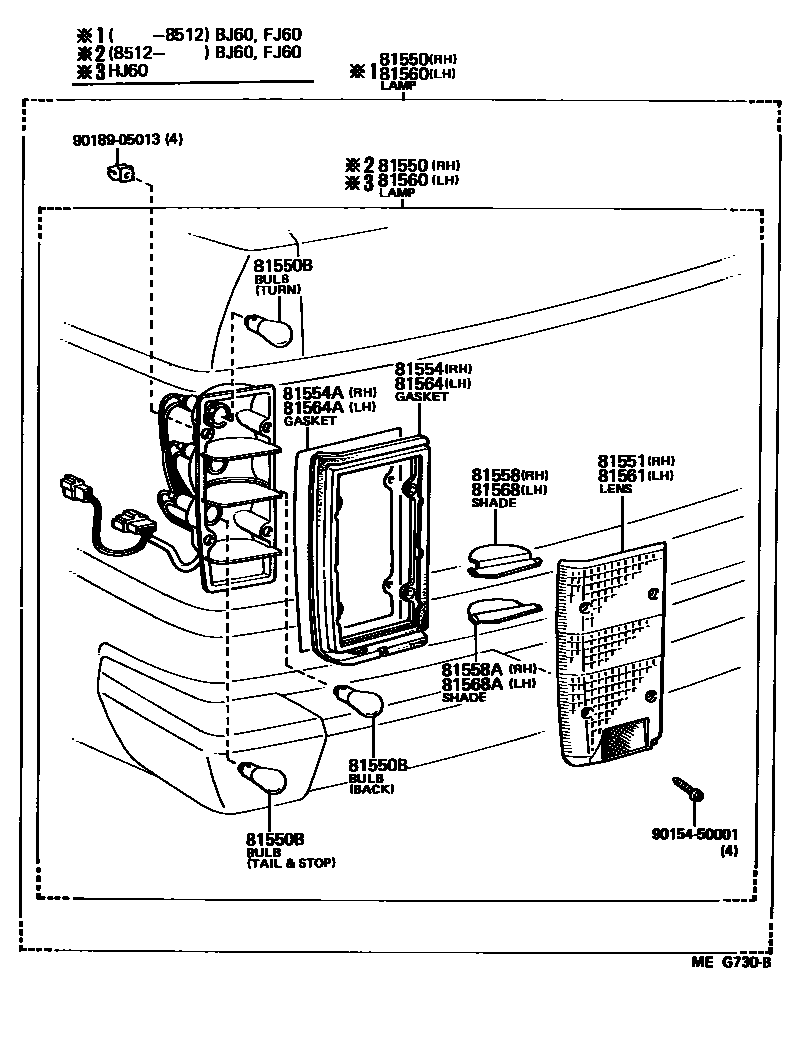

15 parts on this diagram · 1 diagram in section
