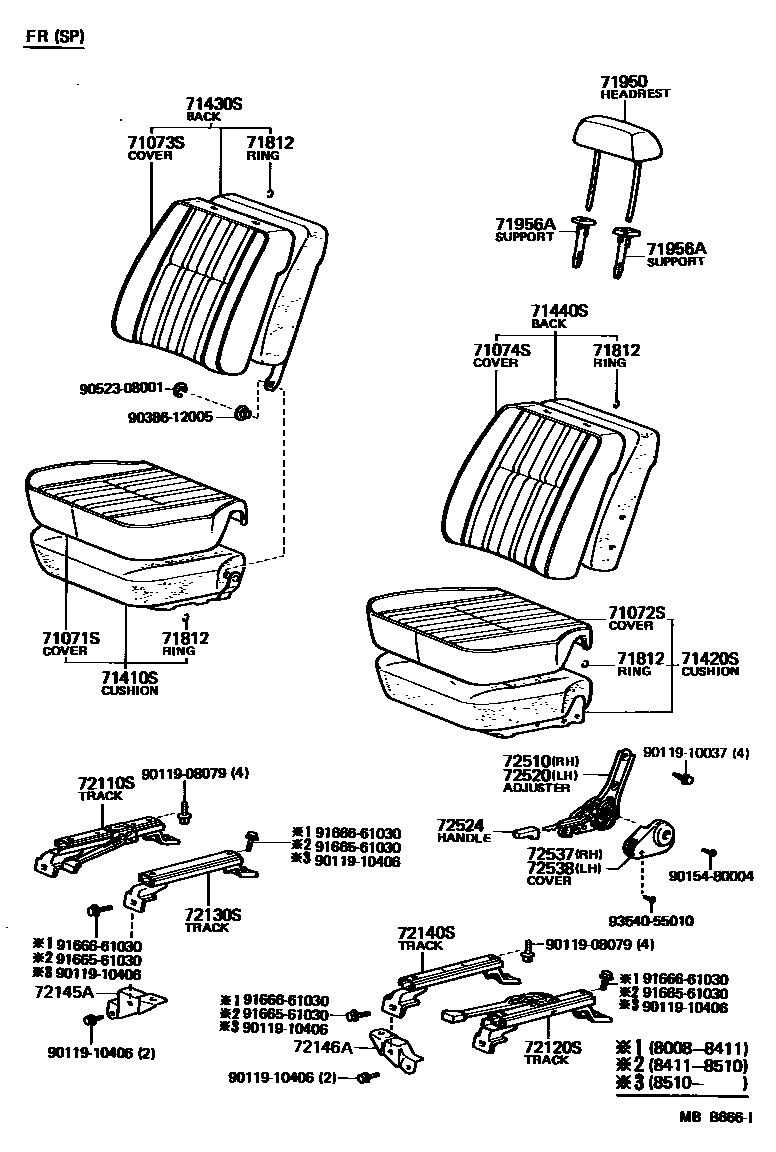

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VL
FB,BLACK,BLACK
FB,BROWN,BROWN
FB,SEPIA BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
VL
FB,BLACK,BLACK
FB,BROWN
FB,BLACK,BLACK
FB,BROWN,BROWN
FB,SEPIA BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
VL
FB,BLACK,BLACK
FB,BROWN,BROWN
FB,SEPIA BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
VL
FB,BLACK,BLACK
FB,BROWN,BROWN
FB,SEPIA BROWN,SEPIA BROWN
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,BLACK,BLACK
FB,BROWN
FB,SEPIA BROWN,SEPIA BROWN
VL
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
FB,BLACK,BLACK
FB,BROWN
FB,SEPIA BROWN,SEPIA BROWN
VL
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,BLACK,BLACK
FB,BROWN,BROWN
FB,SEPIA BROWN,SEPIA BROWN
VL
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
FB,BLACK,BLACK
FB,BROWN,BROWN
FB,SEPIA BROWN,SEPIA BROWN
VL
FB,GRAY,SHADOW GRAY
FB,BROWN,SEPIA BROWN
71950HEADREST ASSY, FRONT SEAT
SHADOW GRAY,GRAY
DARK BROWN,BROWN
SEPIA BROWN,SEPIA BROWN
71956ASUPPORT, FRONT SEAT HEADREST
W(LOCK),W/LOCK
W/O(LOCK),W/O LOCK
W/O(LOCK),W/O LOCK,SHADOW GRAY,GRAY
W/O(LOCK),W/O LOCK,DARK BROWN,BROWN
W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN
W(LOCK),W/LOCK,SHADOW GRAY,GRAY
W(LOCK),W/LOCK,DARK BROWN,BROWN
W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72130STRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT)
72140STRACK ASSY, LH SEAT, INNER (FOR SEPARATE SEAT)
72145ABRACKET, FRONT INNER SEAT TRACK, LOWER FRONT RH
72146ABRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
SEPARATE SEAT
BENCH SEAT
SEPARATE SEAT
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
72524HANDLE, RECLINING ADJUSTER RELEASE
RH,SHADOW GRAY,GRAY
RH,DARK BROWN,BROWN
RH,BROWN,BROWN
RH
LH,SHADOW GRAY,GRAY
LH,DARK BROWN,BROWN
LH,BROWN,BROWN
LH
72537COVER, RECLINING HINGE OUTER, RH
SHADOW GRAY,GRAY
DARK BROWN,BROWN
SEPIA BROWN,SEPIA BROWN
72538COVER, RECLINING HINGE OUTER, LH
SHADOW GRAY,GRAY
DARK BROWN,BROWN
SEPIA BROWN,SEPIA BROWN
9011908079
main90119-08079
9011910037
main90119-10037
9011910406
main90119-10406
9015480004
main90154-80004
9038612005
main90386-12005
9052308001
main90523-08001
9166561030
main91665-61030
9166661030
main91666-61030
9354055010
main93540-55010
31 parts on this diagram · 4 diagrams in section
