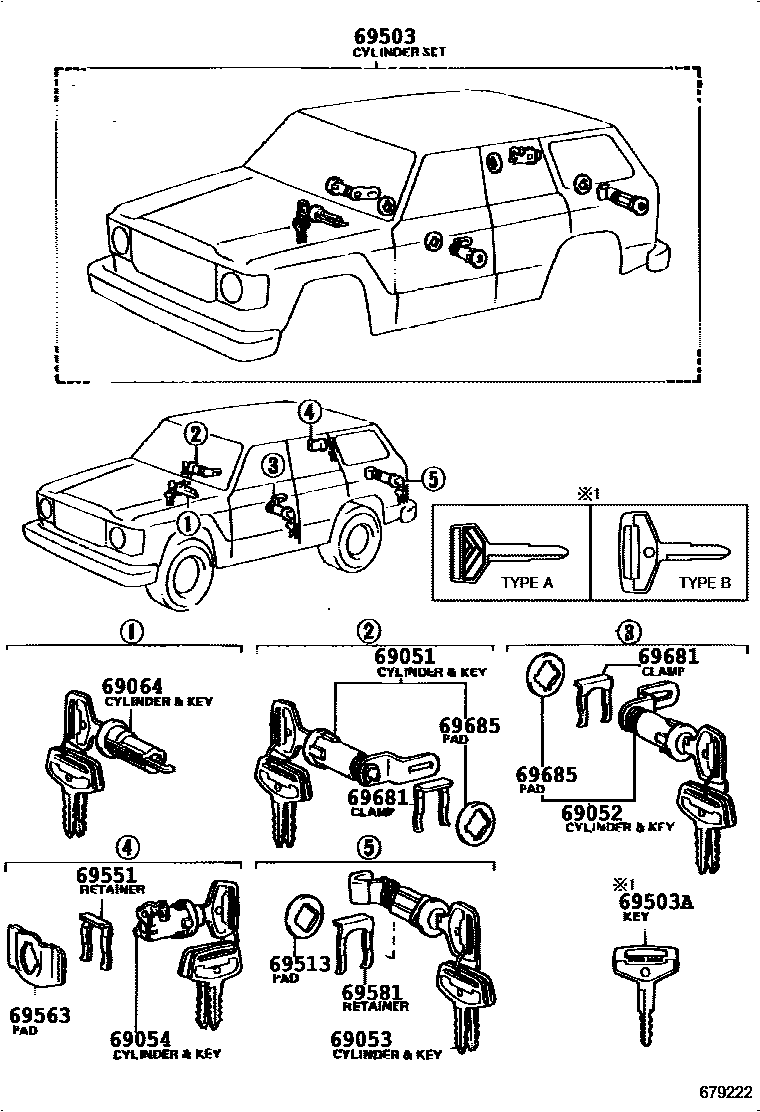

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-90A00iBJ60,FJ60198008-198210

sub69051-90A04

main69051-90A03iBJ60,FJ60,HJ60198210-198708

sub69051-90A06

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-90A00iBJ60,FJ60198008-198210

sub69052-90A04

main69052-90A03iBJ60,FJ60,HJ60198210-198708

sub69052-90A06

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69058-19065iBJ60,FJ60198008-198210

sub69058-37070

main69058-90A02iBJ60,FJ60,HJ60198210-198708

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-90A00iBJ60,FJ60198008-198210

sub69055-90A06

main69055-90A06iBJ60,FJ60,HJ60198210-198708

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14010iFJ60198008-198210

sub69057-22020

main69057-90A00iBJ60198008-198110

sub69057-90A11

main69057-90A05iBJ60,FJ60,HJ60198210-198708

69503CYLINDER SET, LOCK

main69005-90A00iBJ60198008-198110

main69005-90A04iBJ60,FJ60198008-198309

sub69005-90A17

main69005-90A17iBJ60,FJ60,HJ60198309-198708

main69005-90A36iHJ60198608-198708

sub69005-90A62

69503AKEY, BLANK

main90999-00066iBJ60,FJ60198008-198708

MASTER KEY,TYPE A:REFER ILLUST.

sub90999-00085

main90999-00072iBJ60198008-198210

MASTER KEY,TYPE B:REFER ILLUST.

main90999-00104iFJ60,HJ60198210-198708

MASTER KEY,W(*68),W/PROTECTOR

sub90999-00212

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-14010iBJ60,FJ60,HJ60198008-198708

69551RETAINER, BACK DOOR LOCK CYLINDER

main69551-13020iBJ60,FJ60,HJ60198008-198708

69563PAD, BACK DOOR LOCK CYLINDER

main69563-90A00iBJ60,FJ60,HJ60198008-198708

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-14010iBJ60,FJ60,HJ60198008-198708

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iBJ60,FJ60,HJ60198008-198708

69685PAD, LOCK CYLINDER

main69513-90A00iBJ60,FJ60,HJ60198008-198708

sub69513-38010

13 parts on this diagram · 1 diagram in section
