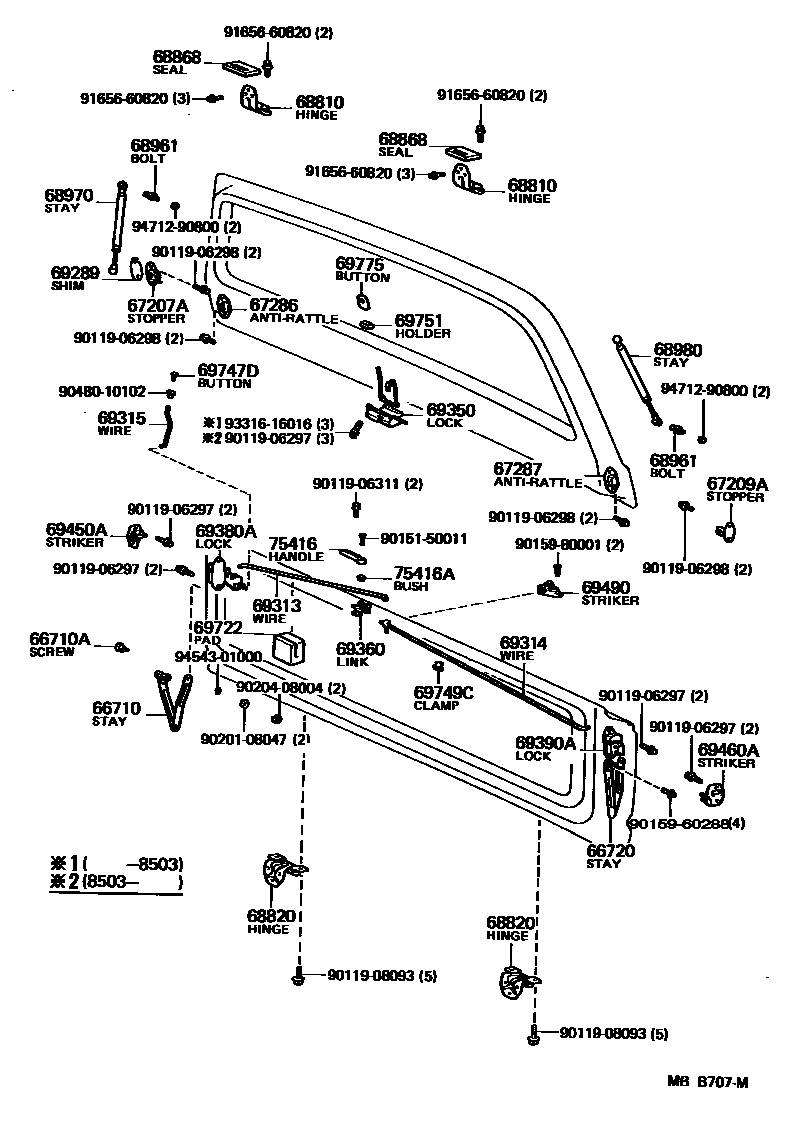

BACK DOOR LOCK & HINGE
66710STAY ASSY, TAIL GATE, RH
66710ASCREW, TAIL GATE ASSY
66720STAY ASSY, TAIL GATE, LH
67207ASTOPPER SUB-ASSY, BACK DOOR, RH
67209ASTOPPER SUB-ASSY, BACK DOOR, LH
67286ANTI-RATTLE, BACK DOOR, RH
67287ANTI-RATTLE, BACK DOOR, LH
68810HINGE ASSY, BACK DOOR, UPPER
68820HINGE ASSY, BACK DOOR, LOWER
68868SEAL, BACK DOOR HINGE
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/O REAR WIPER
W/REAR WIPER
68980STAY ASSY, BACK DOOR
W/O REAR WIPER
W/REAR WIPER
69289SHIM, BACK DOOR STOPPER
69313WIRE, TAIL GATE LOCK, NO.1
69314WIRE, TAIL GATE LOCK, NO.2
69315WIRE, TAIL GATE LOCK, NO.3
69350LOCK ASSY, BACK DOOR
69360LINK ASSY, TAIL GATE REMOTE CONTROL
69380ALOCK ASSY, TAIL GATE, LOWER RH
69390ALOCK ASSY, TAIL GATE, LOWER LH
69450ASTRIKER ASSY, TAIL GATE, LOWER RH
69460ASTRIKER ASSY, TAIL GATE, LOWER LH
69490STRIKER ASSY, BACK DOOR LOCK
69722PAD, BACK DOOR LOCK CONTROL
69747DBUTTON, DOOR LOCKING(FOR TAIL GATE)
BLACK,BLACK
69749CCLAMP, TAIL GATE LOCK LINK
69751HOLDER, DOOR LOCK CONTROL KNOB
BLACK,BLACK
SHADOW GRAY,GRAY
DARK BROWN,BROWN
SEPIA BROWN,SEPIA BROWN
69775BUTTON, DOOR LOCKING(FOR BACK DOOR)
SHADOW GRAY,SHADOW GRAY
SEPIA BROWN,SEPIA BROWN
DARK BROWN,BROWN
SHADOW GRAY,GRAY
DARK BROWN,BROWN
SEPIA BROWN,SEPIA BROWN
75416HANDLE, TAIL GATE, INSIDE
75416ABUSH, TAIL GATE INSIDE HANDLE
9011906297
main90119-06297
9011906298
main90119-06298
9011906311
main90119-06311
9011908093
main90119-08093
9015150011
main90151-50011
9015960288
main90159-60288
9015980001
main90159-80001
9020108047
main90201-08047
9020408004
main90204-08004
9048010102
main90480-10102
9165660820
main91656-60820
9331616016
main93316-16016
9454301000
main94543-01000
9471290800
main94712-90800
45 parts on this diagram · 1 diagram in section
