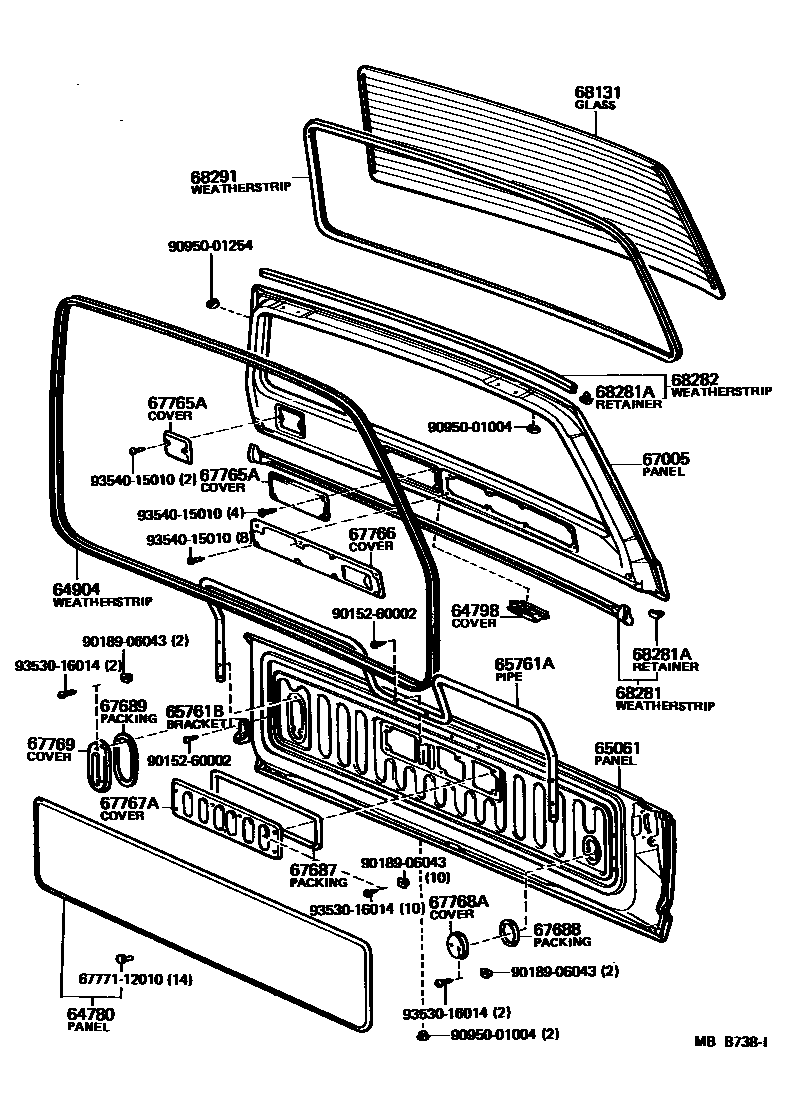

BACK DOOR PANEL & GLASS
64780PANEL ASSY, TAIL GATE TRIM
64798COVER, BACK DOOR LOCK
64904WEATHERSTRIP SUB-ASSY, BACK DOOR
65061PANEL SUB-ASSY, TAIL GATE
W/TAIL GATE PROTECTOR,PIPE
W/TAIL GATE PROTECTOR,PIPE
65761APIPE, TAIL GATE PROTECTOR
65761BBRACKET, TAIL GATE PROTECTOR PIPE
67005PANEL SUB-ASSY, BACK DOOR
W/RR WIPER
W/O RR WIPER
W/RR WIPER
W/O RR WIPER
W/O RR WIPER
W/RR WIPER
W/O RR WIPER
W/RR WIPER
W/RR WIPER
W/O RR WIPER
W/RR WIPER
67687PACKING, TAIL GATE SERVICE HOLE, NO.1
L=910
67688PACKING, TAIL GATE SERVICE HOLE, NO.2
L=267
67689PACKING, TAIL GATE SERVICE HOLE, NO.3
L=393
67765ACOVER, BACK DOOR SERVICE HOLE, NO.1
CTR
67766COVER, BACK DOOR SERVICE HOLE, NO.2
67767ACOVER, TAIL GATE SERVICE HOLE, NO.1
67768ACOVER, TAIL GATE SERVICE HOLE, NO.2
67769COVER, TAIL GATE SERVICE HOLE, NO.3
68131GLASS, BACK DOOR
*TT,T=4.0
*EHTT,T=4.0
*TT,T=3.5,*EHTT,T=4.0
*TT,T=3.5,*TT,T=3.5
*EHTT,T=3.5,*EHTT,T=3.5
*EHTT,T=3.5,*EHTT,T=3.5
*EHTT,T=3.5,*EHTT,T=3.5
68281WEATHERSTRIP, BACK DOOR, LOWER
68281ARETAINER, BACK DOOR WEATHERSTRIP
68282WEATHERSTRIP, BACK DOOR, UPPER
68291WEATHERSTRIP, BACK DOOR GLASS
W/O MOULDING
W/MOULDING
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
9015260002
main90152-60002
9018906043
main90189-06043
9095001004
main90950-01004
9095001254
main90950-01254
9353016014
main93530-16014
9354015010
main93540-15010
27 parts on this diagram · 1 diagram in section
