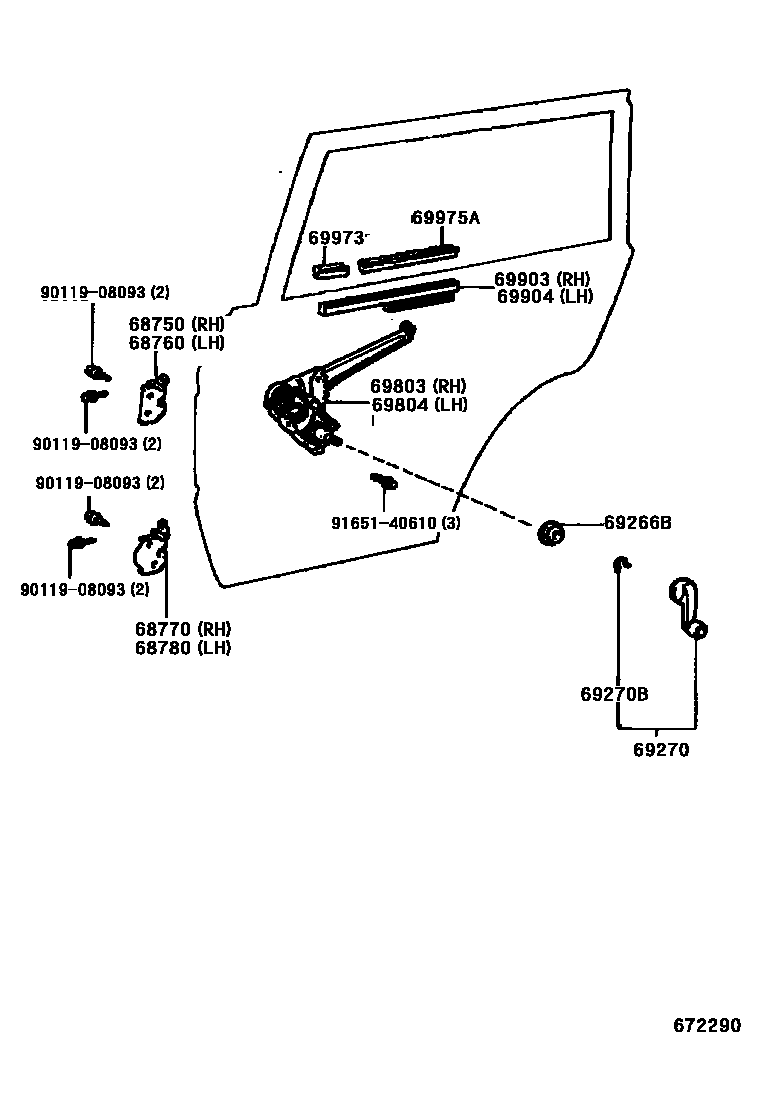

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68710-30080iBJ60,FJ60,HJ60198008-198708

68760HINGE ASSY, REAR DOOR, UPPER LH

main68720-30020iBJ60,FJ60,HJ60198008-198708

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-14020iBJ60,FJ60,HJ60198008-198708

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-14020iBJ60,FJ60,HJ60198008-198708

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69266-22010-08×2iBJ60,FJ60,HJ60198008-198610

NATURAL,NATURAL WHITE

main69285-22010-08×2iFJ60,HJ60198610-198708

NATURAL,NATURAL WHITE

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12010-03×2iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main69260-12010-26×2iFJ60198411-198504

DARK BROWN,BROWN

main69260-12010-46×2iBJ60198411-198504

BROWN,BROWN

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iBJ60,FJ60,HJ60198008-198708

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-90A00iBJ60,FJ60198008-198409

main69830-90A01iBJ60,FJ60,HJ60198409-198708

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-90A00iBJ60,FJ60198008-198409

main69840-90A01iBJ60,FJ60,HJ60198409-198708

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-90A00iBJ60,FJ60198008-198410

main69905-90A02iBJ60,FJ60198410-198411

main69905-90A03iBJ60198411-198504

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-90A00iBJ60,FJ60198008-198410

main69906-90A02iBJ60,FJ60198410-198411

main69906-90A03iBJ60198411-198504

69973FILLER, REAR DOOR GLASS CHANNEL, NO.2

main69973-90A00×2iFJ60,HJ60198610

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-90A00×2iBJ60,FJ60198008-198410

main69975-90A01×2iBJ60,FJ60,HJ60198410-198708

9011908093

main90119-08093

9165140610

main91651-40610

15 parts on this diagram · 1 diagram in section
