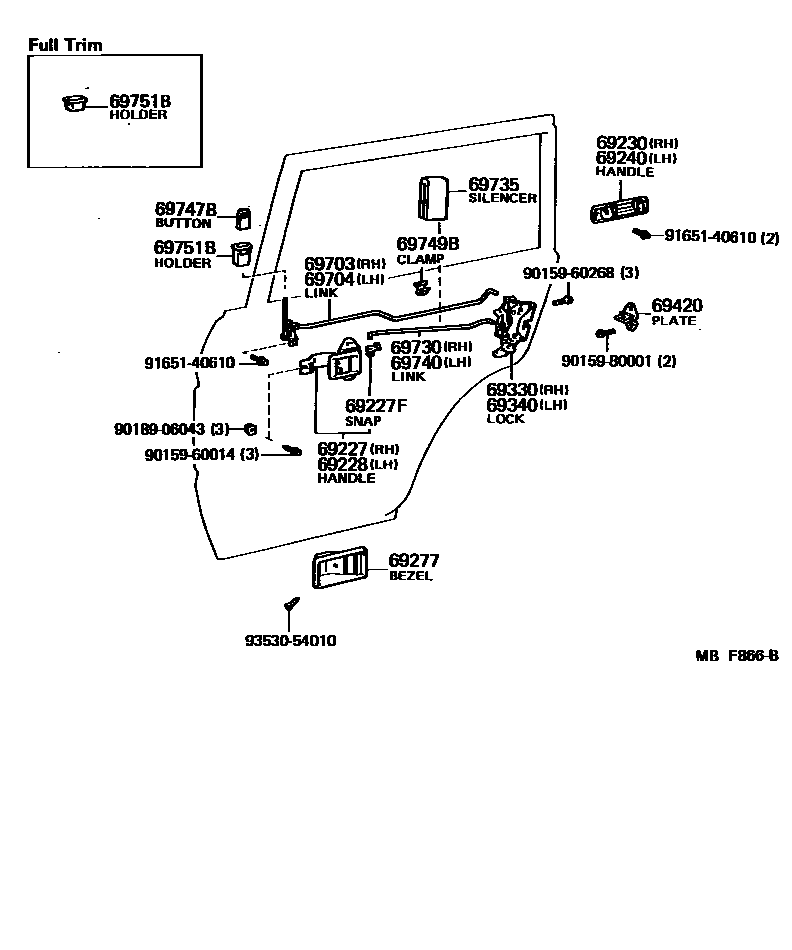

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69205-20020iBJ60,FJ60,HJ60198008-198708

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69273-30020×2iBJ60,FJ60,HJ60198008-198708

69228HANDLE, REAR DOOR INSIDE, LH

main69206-20020iBJ60,FJ60,HJ60198008-198708

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-90A00iBJ60,FJ60,HJ60198008-198708

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-90A00iBJ60,FJ60,HJ60198008-198708

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-06×2iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main69277-16040-23×2iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main69277-16040-36×2iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

69330LOCK ASSY, REAR DOOR, RH

main69330-90A00iBJ60,FJ60,HJ60198008-198708

69340LOCK ASSY, REAR DOOR, LH

main69340-90A00iBJ60,FJ60,HJ60198008-198708

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-22030×2iBJ60,FJ60,HJ60198008-198610

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-90A00iBJ60,FJ60198008-198411

main69770-90A02iBJ60198411-198504

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-90A00iBJ60,FJ60198008-198411

main69780-90A02iBJ60198411-198504

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-90A00iBJ60,FJ60,HJ60198008-198708

69735SILENCER, REAR DOOR LOCK LINK

main69759-30021×2iBJ60,FJ60,HJ60198008-198708

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-90A00iBJ60,FJ60,HJ60198008-198708

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-20020-03×2iFJ60198411-198504

SHADOW GRAY,GRAY

main69741-20020-16×2iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main69741-90K00-03×2iBJ60,FJ60,HJ60198504-198708

SHADOW GRAY,SHADOW GRAY

main69741-90K00-06×2iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010×2iBJ60,FJ60,HJ60198008-198708

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69736-22020×2iFJ60..USA198008-198110

FULL TRIM

main69736-22021×2iBJ60,FJ60198201-198604

main69736-90K00×2iFJ60198604-198708

main69751-90A00-06×2iBJ60,FJ60..CND198008-198110

SEMI TRIM,DARK BROWN,BROWN

9015960014

main90159-60014

9015960268

main90159-60268

9015980001

main90159-80001

9018906043

main90189-06043

9165140610

main91651-40610

9353054010

main93530-54010

23 parts on this diagram · 1 diagram in section
