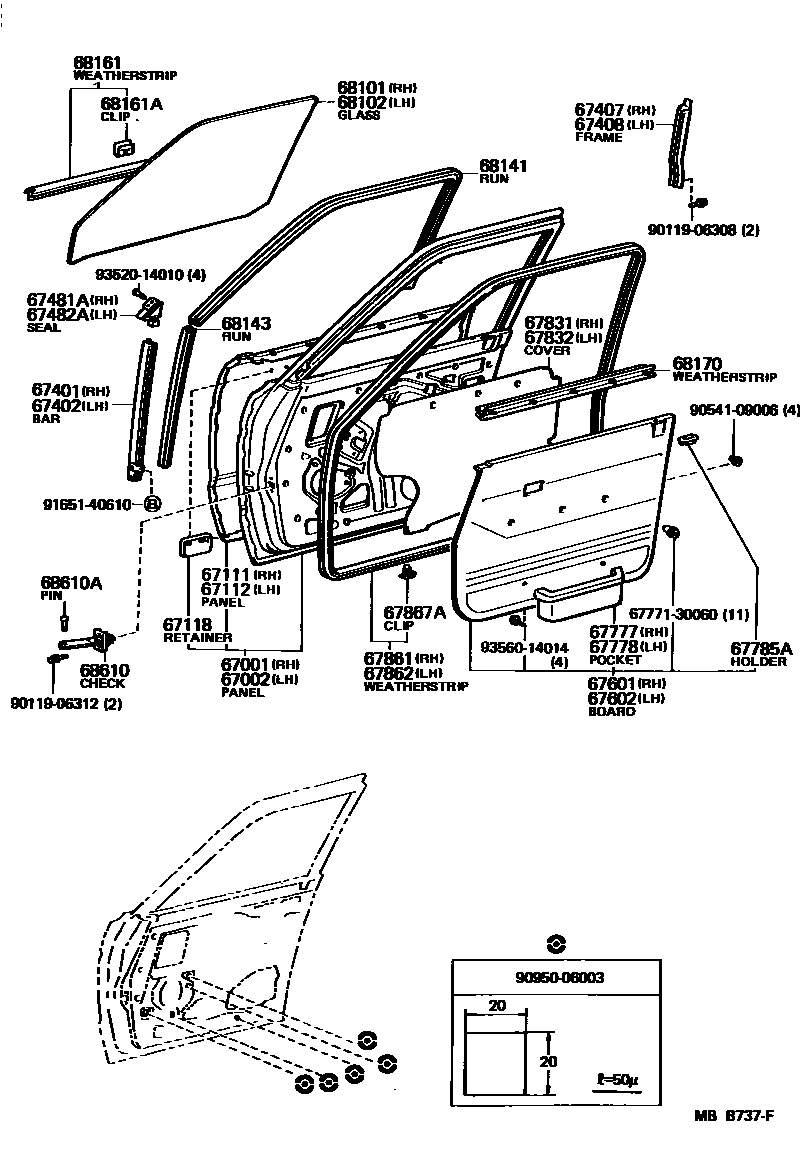

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-90A04iBJ60,FJ60198008-198309

main67001-90A12iBJ60,FJ60198309-198409

main67001-90A20iBJ60,FJ60198409-198510

main67001-90A31iFJ60198510-198604

main67001-90A44iHJ60198601-198708

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-90A04iBJ60198008-198309

main67002-90A09iFJ60198008-198309

main67002-90A14iBJ60198309-198409

main67002-90A19iFJ60198309-198409

main67002-90A29iBJ60198409-198510

main67002-90A34iFJ60,HJ60198409-198601

main67002-90A47iHJ60198601-198708

67111PANEL, FRONT DOOR, OUTER RH

main67111-90A05iBJ60,FJ60,HJ60198008-198601

main67111-90A15iFJ60,HJ60198601-198708

67112PANEL, FRONT DOOR, OUTER LH

main67112-90A05iBJ60,FJ60,HJ60198008-198601

main67112-90A15iFJ60,HJ60198601-198708

67118RETAINER, OUTER MIRROR

main67118-90A00×2iBJ60,FJ60198008-198604

main67118-90A02×2iHJ60198510-198708

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-90A00iBJ60,FJ60,HJ60198008-198708

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-90A00iBJ60,FJ60,HJ60198008-198708

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-90A00iBJ60,FJ60,HJ60198409-198708

main67433-90A00iBJ60,FJ60198008-198409

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-90A00iBJ60,FJ60,HJ60198409-198708

main67434-90A00iBJ60,FJ60198008-198409

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-90A00iBJ60,FJ60,HJ60198008-198708

W/BELT MOULDING

main67481-90A01iFJ60,HJ60198612-198708

W/BELT MOULDING

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-90A00iBJ60,FJ60,HJ60198008-198708

W/BELT MOULDING

main67482-90A01iFJ60,HJ60198612-198708

W/O BELT MOULDING

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-90A02-06iBJ60,FJ60..CND198008-198110

W/O SPEAKER,DARK BROWN,BROWN

main67610-90A03-03iFJ60198411-198504

W/O SPEAKER,SHADOW GRAY,GRAY

main67610-90A03-06iFJ60..USA198008-198504

W/O SPEAKER,DARK BROWN,BROWN

main67610-90A08-06iBJ60,FJ60..CND198008-198110

W/SPEAKER,DARK BROWN,BROWN

main67610-90A09-03iFJ60198411-198504

W/SPEAKER,SHADOW GRAY,GRAY

main67610-90A09-06iFJ60198411-198504

W/SPEAKER,DARK BROWN,BROWN

main67610-90A53-03iBJ60,FJ60,HJ60198504-198608

SHADOW GRAY,SHADOW GRAY

main67610-90A53-06iBJ60,FJ60,HJ60198504-198608

SEPIA BROWN,SEPIA BROWN

main67610-90A57-03iBJ60,FJ60198504-198604

W/SPEAKER,SHADOW GRAY,SHADOW GRAY

main67610-90A57-06iBJ60198411-198504

W/SPEAKER,SEPIA BROWN,SEPIA BROWN

main67610-90A70-03iFJ60198604-198608

W/SPEAKER,SHADOW GRAY,SHADOW GRAY

main67610-90A70-06iFJ60198604-198608

W/SPEAKER,SEPIA BROWN,SEPIA BROWN

main67610-90G01-03iFJ60198608-198708

SHADOW GRAY,SHADOW GRAY

main67610-90G01-06iFJ60198608-198708

SEPIA BROWN,SEPIA BROWN

main67610-90G04-03iFJ60,HJ60198608-198708

W/SPEAKER,SHADOW GRAY,SHADOW GRAY

main67610-90G04-06iFJ60,HJ60198608-198708

W/SPEAKER,SEPIA BROWN,SEPIA BROWN

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-90A02-06iBJ60,FJ60..CND198008-198110

W/O SPEAKER,DARK BROWN,BROWN

main67620-90A03-03iFJ60198411-198504

W/O SPEAKER,SHADOW GRAY,GRAY

main67620-90A03-06iFJ60..USA198008-198504

W/O SPEAKER,DARK BROWN,BROWN

main67620-90A08-06iBJ60,FJ60..CND198008-198110

W/SPEAKER,DARK BROWN,BROWN

main67620-90A09-03iFJ60198411-198504

W/SPEAKER,SHADOW GRAY,GRAY

main67620-90A09-06iFJ60198411-198504

W/SPEAKER,DARK BROWN,BROWN

main67620-90A49-03iBJ60,FJ60,HJ60198504-198511

SHADOW GRAY,SHADOW GRAY

main67620-90A49-06iBJ60,FJ60,HJ60198504-198608

SEPIA BROWN,SEPIA BROWN

main67620-90A53-03iBJ60198411-198504

W/SPEAKER,SHADOW GRAY,SHADOW GRAY

main67620-90A53-06iBJ60,FJ60198504-198604

W/SPEAKER,SEPIA BROWN,SEPIA BROWN

main67620-90A81-03iFJ60198604-198608

W/SPEAKER,SHADOW GRAY,SHADOW GRAY

main67620-90A81-06iFJ60198604-198608

W/SPEAKER,SEPIA BROWN,SEPIA BROWN

main67620-90G04-03iFJ60198608-198708

SHADOW GRAY,SHADOW GRAY

main67620-90G04-06iFJ60198608-198708

SEPIA BROWN,SEPIA BROWN

main67620-90G07-03iFJ60,HJ60198608-198708

W/SPEAKER,SHADOW GRAY,SHADOW GRAY

main67620-90G07-06iFJ60,HJ60198608-198708

W/SPEAKER,SEPIA BROWN,SEPIA BROWN

67777POCKET, FRONT DOOR TRIM, RH

main67777-22040-16iFJ60..USA198008-198110

DARK BROWN,BROWN

main67777-22040-23iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,SHADOW GRAY

main67777-22040-36iBJ60,FJ60,HJ60198504-198708

BROWN,BROWN

67778POCKET, FRONT DOOR TRIM, LH

main67778-22030-16iFJ60..USA198008-198110

DARK BROWN,BROWN

main67778-22030-23iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,SHADOW GRAY

main67778-22030-46iBJ60,FJ60,HJ60198504-198708

BROWN,BROWN

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20040×2iFJ60..USA198008-198110

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-90A02iFJ60198110-198309

W/O SPEAKER

main67831-90A03iBJ60,FJ60198008-198309

W/SPEAKER

main67832-90A02iFJ60198309-198408

W/O SPEAKER

main67832-90A03iBJ60,FJ60198309-198408

W/SPEAKER

main67832-90A04iFJ60198408-198504

W/O SPEAKER

main67832-90A05iBJ60; FJ60198411-198504

W/SPEAKER

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-90A02iBJ60,FJ60198008-198110

W/O SPEAKER

main67831-90A03iBJ60,FJ60198008-198309

W/SPEAKER

main67832-90A02iFJ60198504-198708

W/O SPEAKER

main67832-90A03iBJ60,FJ60198309-198408

W/SPEAKER

main67832-90A04iFJ60198408-198504

W/O SPEAKER

main67832-90A05iBJ60; FJ60198411-198504

W/SPEAKER

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90A00iBJ60,FJ60,HJ60198008-198708

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-90A00iBJ60,FJ60,HJ60198008-198708

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040×44iBJ60,FJ60,HJ60198008-198708

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-90A00iBJ60,FJ60..CND198008-198110

*TEM,T=4.0,*TEM,T=4.0

main68111-90A01iBJ60,FJ60,HJ60198201-198708

*TT,T=4.0,*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-90A00iBJ60,FJ60..CND198008-198110

*TEM,T=4.0,*TEM,T=4.0

main68112-90A01iBJ60,FJ60,HJ60198201-198708

*TT,T=4.0,*TT,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-90A00×2iBJ60,FJ60198008-198510

main68141-90A03×2iFJ60,HJ60198510-198708

68143RUN, FRONT DOOR GLASS, LOWER

main68143-90A00×2iBJ60,FJ60198008-198510

main68143-90A01×2iFJ60,HJ60198510-198708

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-90A00iFJ60198601-198604

RH

main68160-90A02iHJ60198601-198708

RH

main68210-90A01iFJ60198601-198604

LH

main68210-90A02iHJ60198601-198708

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030×12iBJ60,FJ60,HJ60198008-198601

main68211-90K00×12iFJ60198604-198708

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-90A00×2iBJ60,FJ60..CND198008-198110

main68170-90A01×2iFJ60..USA198008-198110

68610CHECK ASSY, FRONT DOOR

main68610-22010×2iBJ60,FJ60,HJ60198008-198708

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iBJ60,FJ60198410-198507

main68617-22010×2iBJ60,FJ60198008-198410

main68617-90A00×2iBJ60,FJ60,HJ60198507-198606

main68617-90A01×2iFJ60,HJ60198606-198708

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9011906308

main90119-06308

9011906312

main90119-06312

9054109006

main90541-09006

9095006003

main90950-06003

9165140610

main91651-40610

9352014010

main93520-14010

9356014014

main93560-14014

38 parts on this diagram · 2 diagrams in section
