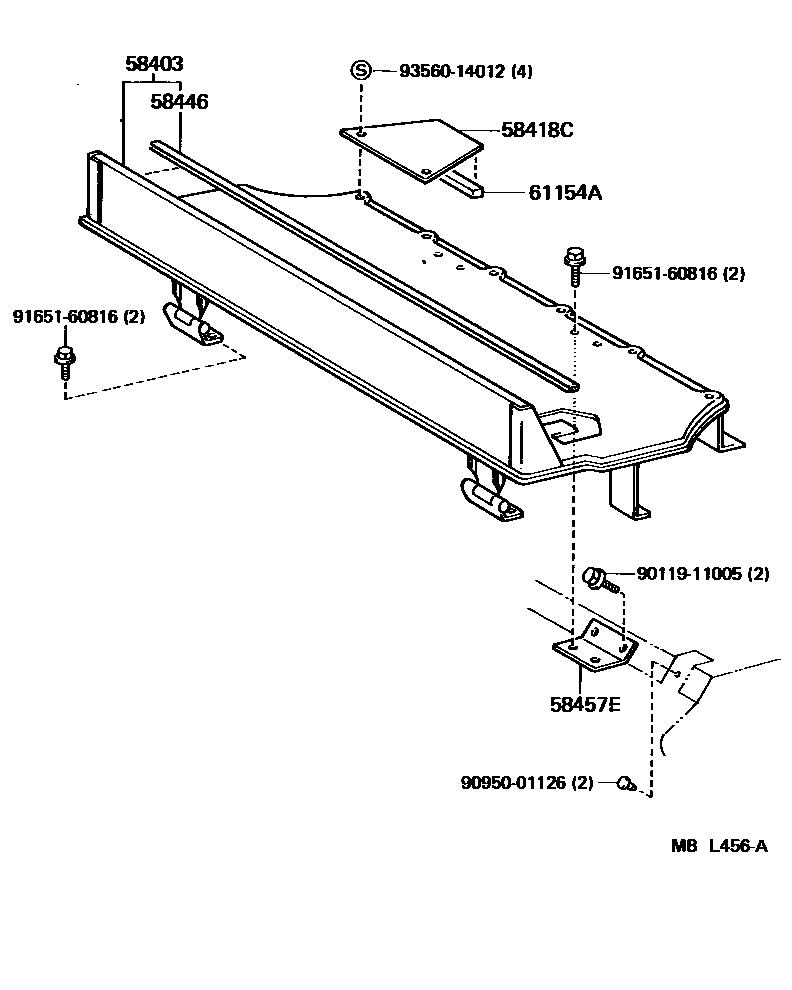

DECK BOARD & DECK TRIM COVER

58403BOARD SUB-ASSY, DECK

main58410-90A00iFJ60..WGV198609-198708

58418CPLATE, DECK BOARD

main58418-90A00×2iFJ60..WGV198609-198708

58446PROTECTOR, DECK BOARD BRACKET

main58446-90A00iFJ60..WGV198609-198708

58457EBRACKET, DECK BOARD, REAR

main58457-90A00×2iFJ60..WGV198609-198708

61154ACUSHION, SIDE PANEL STIFFENER, NO.4

main61154-90C00×2iFJ60..WGV198609-198708

9011911005

main90119-11005

9095001126

main90950-01126

9165160816

main91651-60816

9356014012

main93560-14012

9 parts on this diagram · 1 diagram in section
