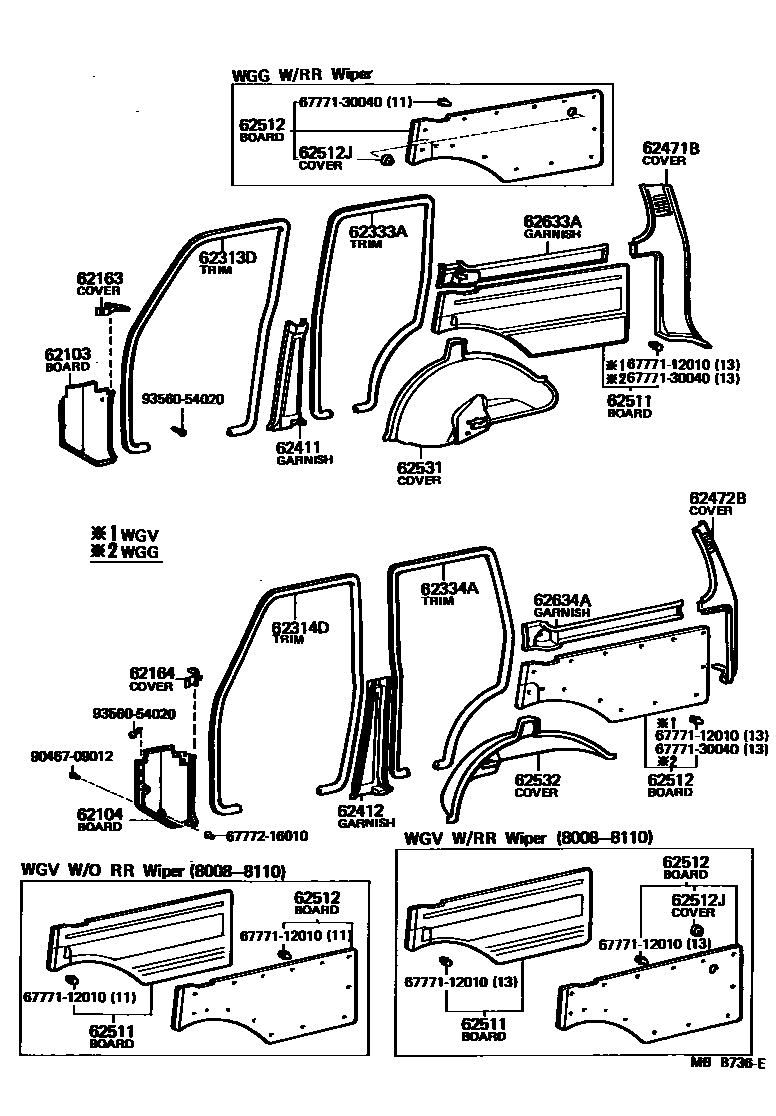

INSIDE TRIM BOARD

0001 1 0003 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62101-90A00-06iBJ60,FJ60198101-198411

DARK BROWN,BROWN

main62101-90A00-16iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

main62101-90A01iBJ60,FJ60198008-198101

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62102-90A00-06iBJ60,FJ60198101-198411

DARK BROWN,BROWN

main62102-90A00-16iBJ60198411-198504

SEPIA BROWN,SEPIA BROWN

main62102-90A02iBJ60,FJ60198008-198101

62163COVER, COWL SIDE INSTRUMENT PANEL BRACKET, RH

main62163-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62163-90A00-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62163-90A00-16iBJ60198411-198504

SEPIA BROWN,SEPIA BROWN

62164COVER, COWL SIDE INSTRUMENT PANEL BRACKET, LH

main62164-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62164-90A00-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62164-90A00-16iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

62313DTRIM, FRONT DOOR OPENING, RH

main62313-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62313-90A00-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62313-90A00-16iBJ60198411-198504

SEPIA BROWN,SEPIA BROWN

62314DTRIM, FRONT DOOR OPENING, LH

main62313-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62313-90A00-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62313-90A00-16iBJ60198411-198504

SEPIA BROWN,SEPIA BROWN

62333ATRIM, REAR DOOR OPENING, RH

main62333-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62333-90A00-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62333-90A00-16iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

62334ATRIM, REAR DOOR OPENING, LH

main62333-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62333-90A00-06iFJ60198411-198504

DARK BROWN,BROWN

main62333-90A00-16iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

62411GARNISH, CENTER PILLAR, RH

main62411-90A01-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62411-90A01-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62411-90A01-16iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

62412GARNISH, CENTER PILLAR, LH

main62412-90A01-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62412-90A01-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62412-90A01-16iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

62471BCOVER, REAR PILLAR, RH

main62471-90A00-08iFJ60..USA198008-198110

IVORY,IVORY

main62471-90A00-18iBJ60198411-198504

IVORY,IVORY

62472BCOVER, REAR PILLAR, LH

main62472-90A00-08iFJ60..USA198008-198110

IVORY,IVORY

main62472-90A00-18iBJ60198411-198504

IVORY,IVORY

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-90A02iBJ60,FJ60..CND198008-198110

main62510-90A03iFJ60..USA198008-198110

main62510-90A06-03iBJ60,FJ60198210-198411

SHADOW GRAY,GRAY

main62510-90A06-06iFJ60198411-198504

DARK BROWN,BROWN

main62510-90A15-03iBJ60198411-198504

SHADOW GRAY,SHADOW GRAY

sub62510-90A17

main62510-90A15-06iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

sub62510-90A17

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-90A02iFJ60..USA198008-198110

W/RR WIPER

main62520-90A04iBJ60,FJ60..CND198008-198110

W/O RR WIPER

main62520-90A05iBJ60,FJ60198110-198210

W/O RR WIPER

main62520-90A06iBJ60,FJ60..CND198008-198110

W/RR WIPER

main62520-90A11-03iBJ60,FJ60198210-198411

W/RR WIPER,SHADOW GRAY,GRAY

main62520-90A11-06iFJ60198411-198504

W/RR WIPER,DARK BROWN,BROWN

main62520-90A13-03iBJ60,FJ60198210-198411

W/O RR WIPER, SHADOW GRAY,GRAY

main62520-90A13-06iBJ60,FJ60198210-198411

W/RR WIPER,DARK BROWN,BROWN

main62520-90A13-13iBJ60198411-198504

W/O RR WIPER,SHADOW GRAY,SHADOW GRAY

main62520-90A13-16iBJ60,FJ60198504-198604

W/O RR WIPER,SEPIA BROWN,SEPIA BROWN

main62520-90A33-03iBJ60,FJ60198504-198604

W/RR WIPER,SHADOW GRAY,SHADOW GRAY

main62520-90A33-06iBJ60198411-198504

W/RR WIPER,SEPIA BROWN,SEPIA BROWN

main62520-90A46-03iHJ60198510-198708

SHADOW GRAY,SHADOW GRAY

main62520-90A46-06iHJ60198510-198708

SEPIA BROWN,SEPIA BROWN

62512JCOVER, QUARTER TRIM WASHER

main62605-90A00-03iBJ60,FJ60,HJ60198210-198708

W/RR WIPER,SHADOW GRAY,GRAY

main62605-90A00-06iFJ60198411-198504

W/RR WIPER,DARK BROWN,BROWN

main62605-90A00-16iBJ60198411-198504

W/RR WIPER,SEPIA BROWN,SEPIA BROWN

62531COVER, WHEEL HOUSE TRIM, RH

main62613-90A01-03iBJ60,FJ60198210-198411

SHADOW GRAY,GRAY

main62613-90A01-06iFJ60198411-198504

DARK BROWN,BROWN

main62613-90A07-03iBJ60,FJ60,HJ60198504-198708

SHADOW GRAY,SHADOW GRAY

main62613-90A07-06iBJ60,FJ60,HJ60198504-198708

SEPIA BROWN,SEPIA BROWN

62532COVER, WHEEL HOUSE TRIM, LH

main62614-90A00-03iBJ60,FJ60,HJ60198210-198708

SHADOW GRAY,GRAY

main62614-90A00-06iBJ60,FJ60198008-198411

DARK BROWN,BROWN

main62614-90A00-16iBJ60198411-198504

SEPIA BROWN,SEPIA BROWN

62633AGARNISH, QUARTER TRIM, RH

main62505-90A03-08iFJ60..WGV198609-198708

IVORY

main62633-90A00iBJ60,FJ60198110-198210

main62633-90A03-08iFJ60198411-198504

IVORY,IVORY

main62633-90A03-18iBJ60,FJ60198504-198604

IVORY,IVORY

main62633-90A09-08iFJ60..WGG198604-198708

IVORY,IVORY

62634AGARNISH, QUARTER TRIM, LH

main62506-90A03-08iFJ60..WGV198609-198708

IVORY

main62634-90A00iFJ60..USA198008-198110

main62634-90A03-08iFJ60198411-198504

IVORY,IVORY

main62634-90A03-18iBJ60,FJ60198504-198604

IVORY,IVORY

main62634-90A09-08iHJ60198510-198708

IVORY,IVORY

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777130040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30040

6777216010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-16010

9046709012

main90467-09012

9356054020

main93560-54020

24 parts on this diagram · 2 diagrams in section
