SIDE WINDOW

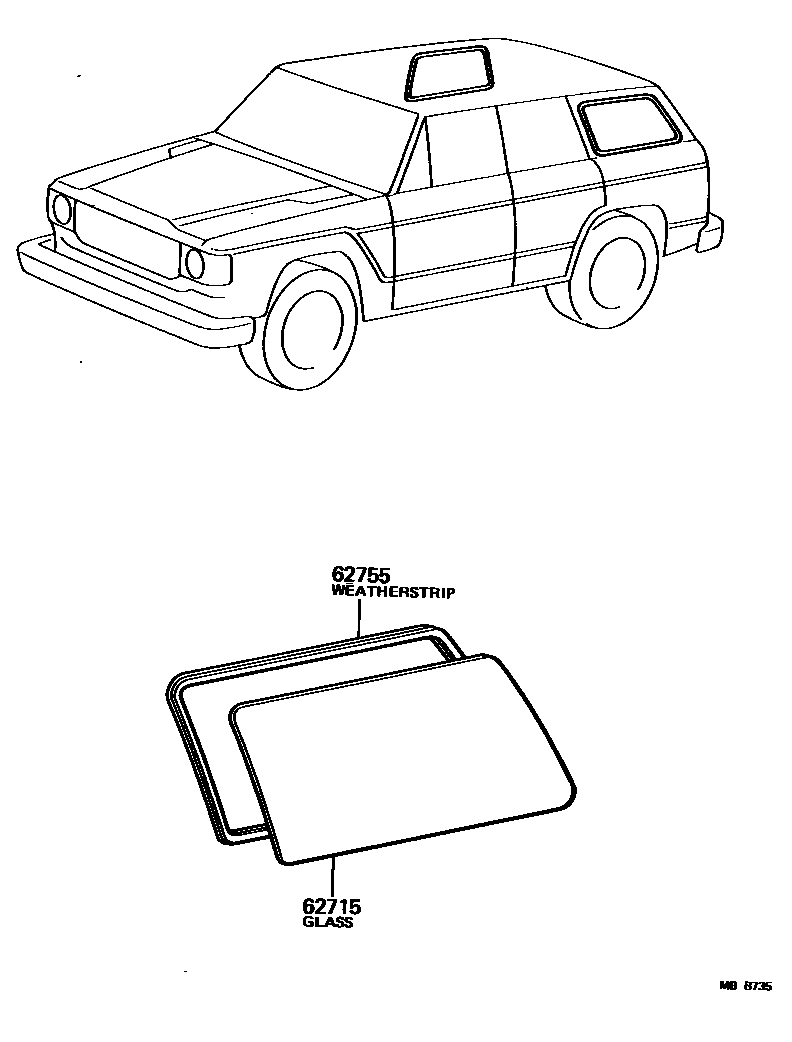

62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62711-90A00iBJ60198110-198510

RH,*TEM,T=4.0

main62711-90A01iBJ60,HJ60198411-198604

*TT,T=4.0,RH,*TT,T=4.0

main62711-90A12iFJ60,HJ60198604-198708

*TT,T=3.5,RH,*TT,T=3.5

main62712-90A00iBJ60,FJ60..CND198008-198110

LH,*TEM,T=4.0

main62712-90A01iBJ60,HJ60198411-198604

*TT,T=4.0,LH,*TT,T=4.0

main62712-90A11iFJ60,HJ60198604-198708

*TT,T=3.5,LH,*TT,T=3.5

62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62741-90A00×2iBJ60,FJ60..CND198008-198110

W/O MOULDING

main62741-90A01×2iBJ60,FJ60,HJ60198008-198708

W/MOULDING

2 parts on this diagram · 1 diagram in section
