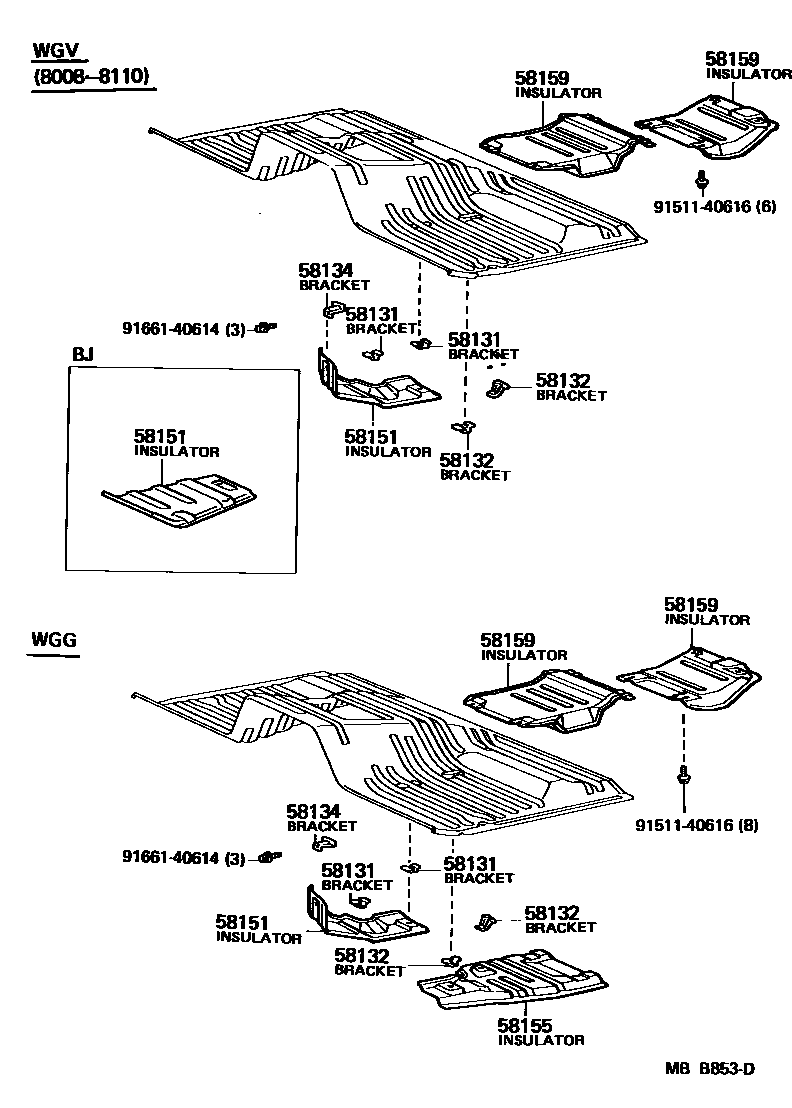

FLOOR INSULATOR

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-90A00×2iBJ60198008-198510

main58231-90A00iFJ60,HJ60198008-198708

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58131-90A00iFJ60..USA198008-198606

FR

main58132-90A00iFJ60..USA198008-198609

RR

main58344-90A01iFJ60198606-198708

FR

58134BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1

main58131-90A00iFJ60198411-198504

RH

main58232-90A00iHJ60198510-198606

LH

main58345-90A00iBJ60198411-198504

RH

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58153-90A00iBJ60198008-198510

main58155-90A00iFJ60,HJ60198008-198708

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58151-90A00iFJ60..USA198008-198210

main58151-90A01iFJ60198210-198604

main58151-90A03iFJ60198604-198708

58159INSULATOR, MAIN MAFFLAR HEAT

main58041-90A00iBJ60,FJ60198008-198604

FR

main58041-90A01iHJ60198510-198708

FR

main58043-90A00iBJ60,FJ60,HJ60198008-198708

RR

9151140616

main91511-40616

9166140614

main91661-40614

8 parts on this diagram · 1 diagram in section
