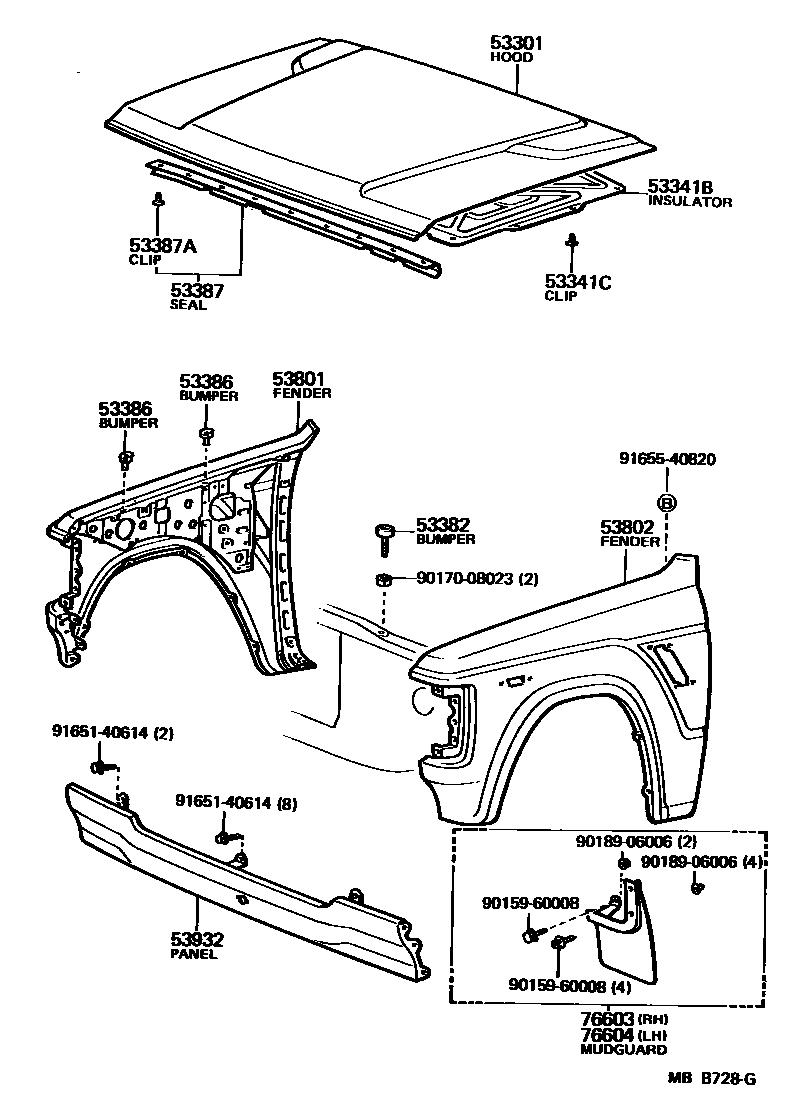

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-90A01iBJ60,FJ60,HJ60198008-198708

53341BINSULATOR, HOOD

main53341-90A00iBJ60,FJ60,HJ60198008-198708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014×19iBJ60,FJ60,HJ60198008-198708

53382BUMPER, HOOD, FRONT

main53382-20011×2iBJ60,FJ60,HJ60198008-198511

main53382-90A00×2iFJ60,HJ60198511-198708

53386BUMPER, HOOD, REAR

main53382-30060×4iBJ60,FJ60,HJ60198008-198708

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-90A00iBJ60,FJ60,HJ60198008-198708

53387ACLIP(FOR HOOD TO RADIATOR SUPPORT SET)

main90467-08008×9iBJ60,FJ60198008-198109

main90467-08011×9iBJ60,FJ60,HJ60198109-198708

53801FENDER SUB-ASSY, FRONT RH

main53801-90A02iBJ60,FJ60..CND198008-198110

main53801-90A04iFJ60..USA198008-198603

W/MOULDING

main53801-90A79iFJ60198603-198708

W/MOULDING

53802FENDER SUB-ASSY, FRONT LH

main53802-90A02iBJ60,FJ60..CND198008-198110

main53802-90A04iFJ60..USA198008-198603

W/MOULDING

main53802-90A59iFJ60198603-198708

W/MOULDING

53932PANEL SUB-ASSY, FRONT END

main53903-90A02iFJ60198411-198504

W/O HEADLAMP CLEANER

main53903-90A03iBJ60,FJ60198008-198110

W/HEADLAMP CLEANER

main53903-90A08iBJ60,FJ60,HJ60198504-198708

main53903-90A09iFJ60198504-198708

W/HEADLAMP CLEANER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-69015iBJ60,FJ60,HJ60198008-198708

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-69015iBJ60,FJ60,HJ60198008-198708

9015960008

main90159-60008

9017008023

main90170-08023

9018906006

main90189-06006

9165140614

main91651-40614

9165540820

main91655-40820

17 parts on this diagram · 1 diagram in section
