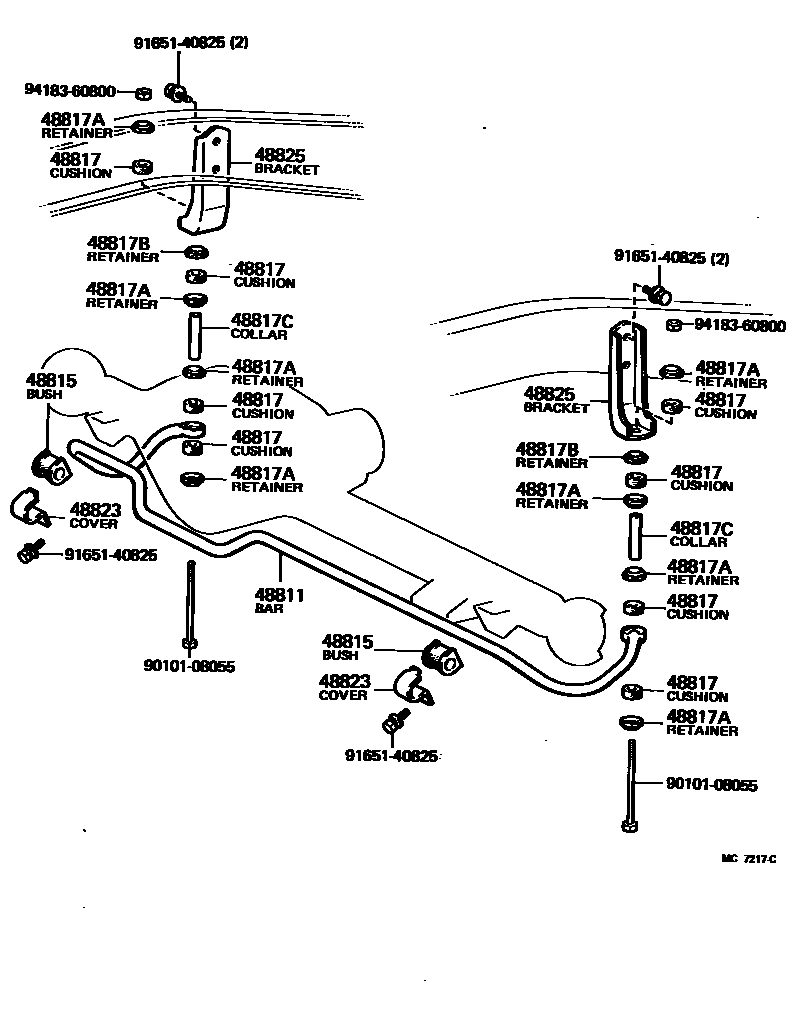

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0005 1

48811BAR, STABILIZER, FRONT

main48811-60010iBJ60,FJ60,HJ60..WGG198008-198608

main48811-60011iFJ60,HJ60..WGG198608-198708

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20030×2iBJ60,FJ60,HJ60..WGG198008-198708

48817CUSHION, FRONT STABILIZER

main48817-30010×8iBJ60,FJ60,HJ60..WGG198008-198708

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×8iBJ60,FJ60,HJ60..WGG198008-198708

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015×2iBJ60,FJ60,HJ60..WGG198008-198708

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09006×2iBJ60,FJ60,HJ60..WGG198008-198708

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-27010×2iBJ60,FJ60,HJ60..WGG198008-198708

48825BRACKET, STABILIZER, NO.2

main48825-60010×2iBJ60,FJ60,HJ60..WGG198008-198708

9010108055

main90101-08055

9165140825

main91651-40825

9418360800

main94183-60800

11 parts on this diagram · 4 diagrams in section
