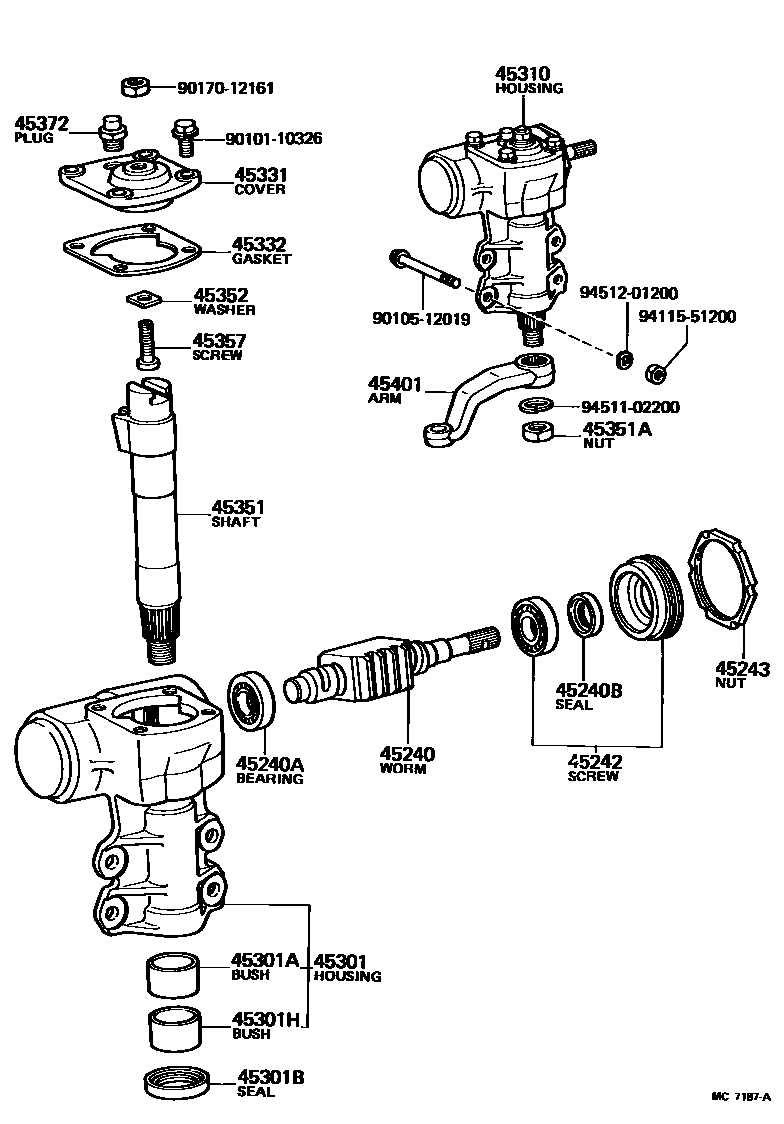

FRONT STEERING GEAR & LINK
45240WORM ASSY, STEERING
45240ABEARING(FOR STEERING WORM)
45240BSEAL, OIL(FOR STEERING WORM)
45242SCREW, WORM BEARING ADJUSTING
45243NUT, WORM BEARING ADJUSTING SCREW LOCK
45301HOUSING SUB-ASSY, STEERING GEAR
45301ABUSH OR BEARING, SECTOR SHAFT, NO.1
45301BSEAL, OIL(FOR SECTOR SHAFT)
45301HBUSH OR BEARING, SECTOR SHAFT, NO.2
45310HOUSING ASSY, STEERING GEAR
45331COVER, SECTOR SHAFT END
45332GASKET, SECTOR SHAFT END COVER
45351SHAFT, STEERING SECTOR
45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352WASHER, SECTOR SHAFT THRUST
45357SCREW, SECTOR SHAFT ADJUSTING
45372PLUG, STEERING GEAR HOUSING OIL
45401ARM SUB-ASSY, PITMAN
9010110326
main90101-10326
9010512019
main90105-12019
9017012161
main90170-12161
9411551200
main94115-51200
9451102200
main94511-02200
9451201200
main94512-01200
24 parts on this diagram · 6 diagrams in section
