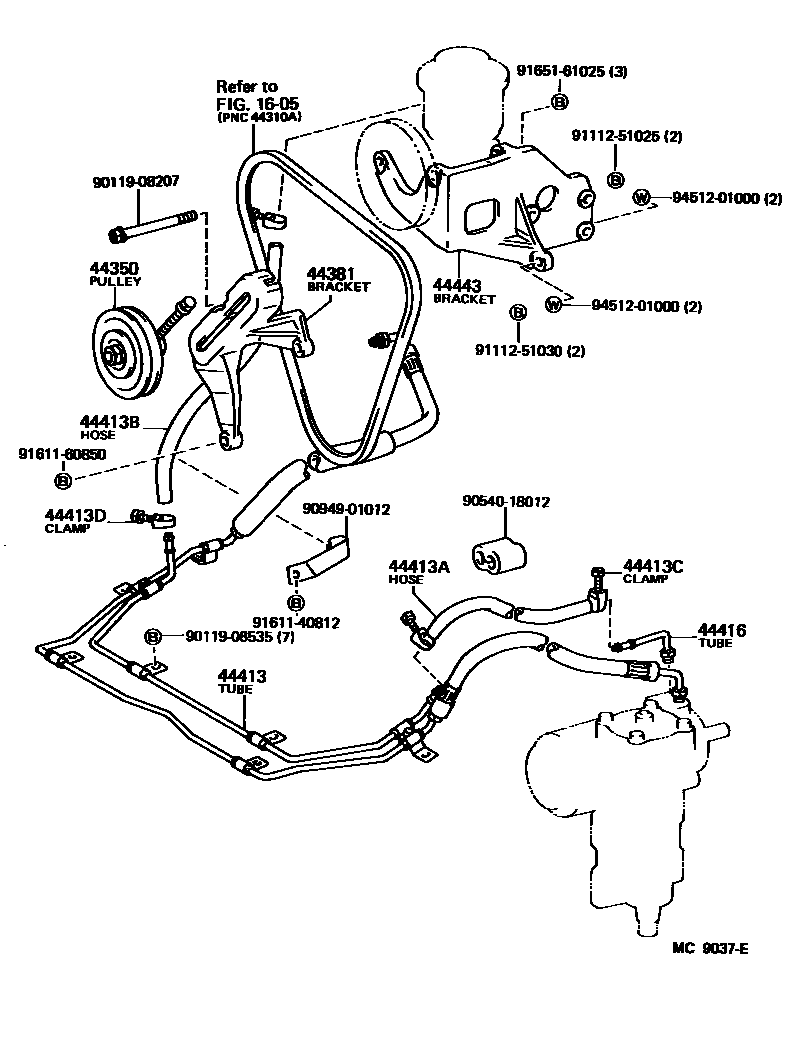

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

44350PULLEY ASSY, POWER STEERING IDLE

main16630-47020iHJ60198510-198708

main44350-60010iBJ60198210-198510

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-60020iBJ60198210-198510

44413TUBE, PRESSURE FEED, NO.1

main44410-60040iFJ60..CND198008-198012

main44410-60041iFJ60..CND198012-198110

main44410-60070iBJ60198210-198411

main44410-60130iHJ60198510-198708

main44410-60160iBJ60198411-198510

44413AHOSE(FOR RETURN TUBE OUTLET)

main90445-18089iFJ60..CND198008-198110

44413BHOSE(FOR RESERVOIR TANK INLET)

main90445-18089iHJ60198510-198708

main90445-18090iBJ60198210-198510

44413CCLAMP(FOR RETURN TUBE OUTLET HOSE)

main90460-01001×2iBJ60,HJ60198210-198708

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iFJ60..CND198008-198110

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60060iFJ60198008-198210

main44416-60061iHJ60198510-198708

44443BRACKET, PUMP

main44443-60010iFJ60..CND198008-198110

main44443-60020iFJ60..WGG198008-198708

main44443-60040iBJ60198210-198411

main44443-60060iBJ60198411-198510

main44443-60071iHJ60198510-198708

9011908207

main90119-08207

9011908535

main90119-08535

9054018012

main90540-18012

9094901012

main90949-01012

9111251025

main91112-51025

9111251030

main91112-51030

9161140812

main91611-40812

9161160850

main91611-60850

9165161025

main91651-61025

9451201000

main94512-01000

20 parts on this diagram · 4 diagrams in section
