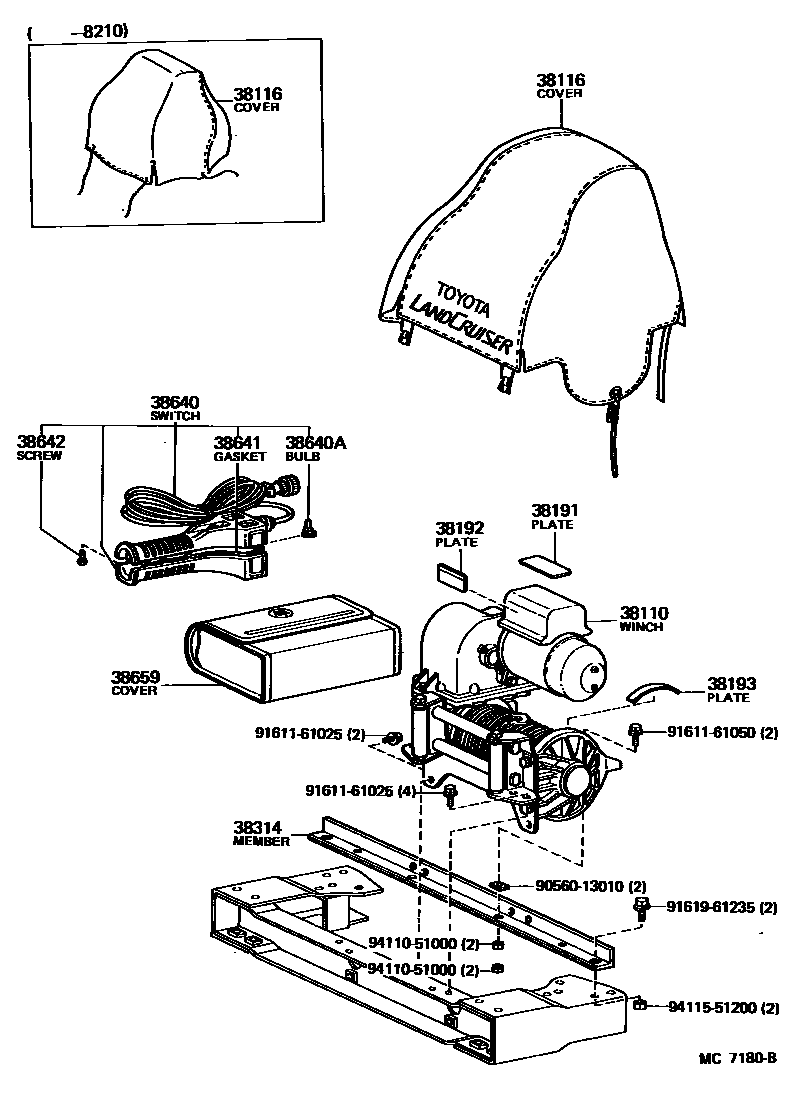

WINCH

0001 1 0003 1 0005 1 0007 1

38110WINCH ASSY

main38110-60070iBJ60,FJ60198008-198302

main38110-60071iFJ60198411-198504

main38110-60072iFJ60198504-198510

38116COVER, WINCH

main38116-60010iBJ60,FJ60198008-198210

main38286-60010iFJ60198502-198510

38191PLATE, WINCH CAUTION, NO.1

main38191-60010iBJ60,FJ60198008-198502

38192PLATE, WINCH CAUTION, NO.2

main38192-60010iBJ60,FJ60198008-198510

38193PLATE, WINCH CAUTION, NO.3

main38193-60010iBJ60,FJ60198008-198502

38314MEMBER, REAR BASE

main38314-60060iBJ60,FJ60198008-198502

38640SWITCH ASSY, WINCH CONTROL

main38640-60010iBJ60,FJ60198008-198502

12V

38640ABULB (FOR WINCH CONTROL SWITCH)

main90981-11024×2iBJ60,FJ60198008-198502

12V 1.4W,12V,1.4W

38641GASKET (FOR WINCH CONTROL SWITCH)

main38641-60010iBJ60,FJ60198008-198502

38642SCREW (FOR WINCH CONTROL SWITCH)

main38642-60010×8iBJ60,FJ60198008-198502

38659COVER, WINCH CONTROL SWITCH

main38659-60010iBJ60,FJ60198008-198502

9056013010

main90560-13010

9161161025

main91611-61025

9161161050

main91611-61050

9161961235

main91619-61235

9411051000

main94110-51000

9411551200

main94115-51200

17 parts on this diagram · 4 diagrams in section
